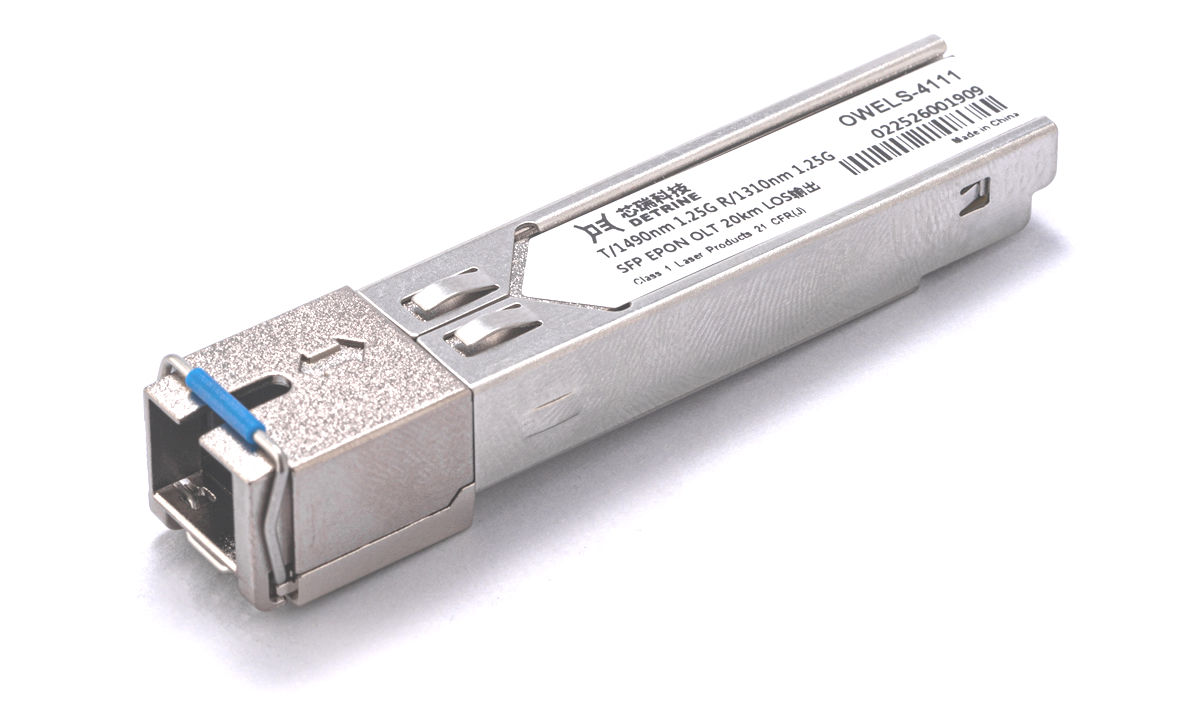

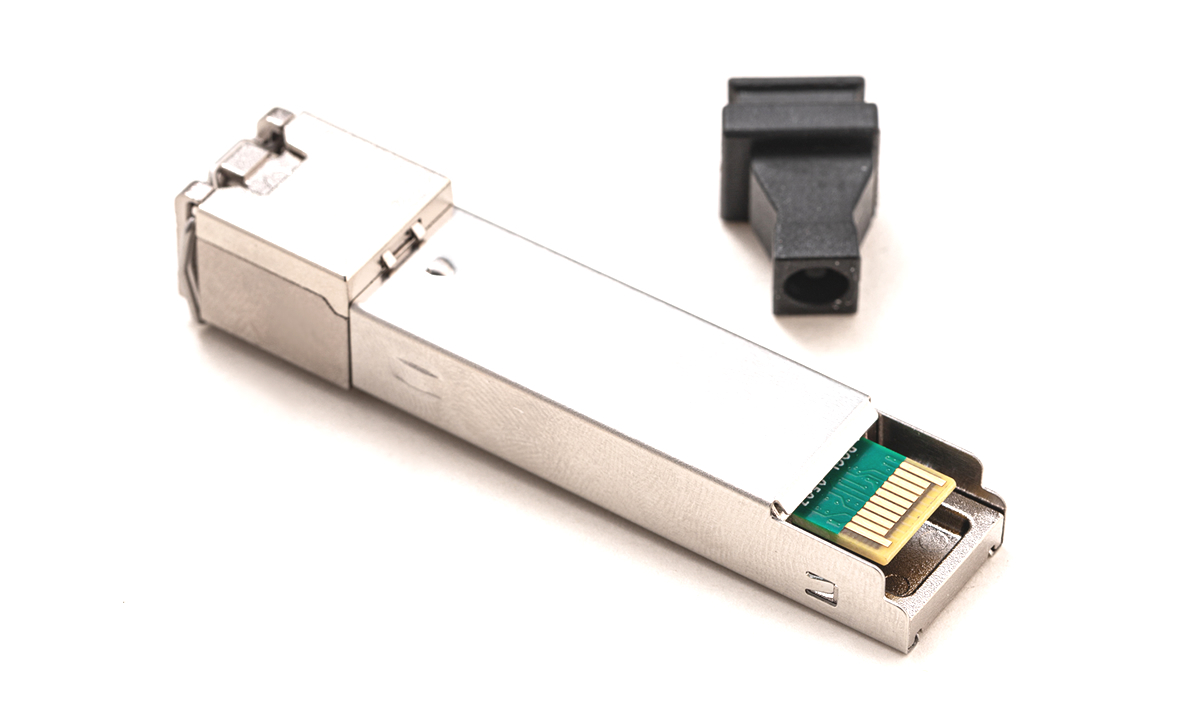

SFP+ XGPON&GPON Combo OLT C+

The Gigac SFP+ XGPON & GPON Combo OLT C+ is a highly integrated and advanced optical line terminal (OLT) device that combines the functionalities of both XGPON and GPON technologies with the convenience of SFP+ modules. This combo unit offers superior performance, scalability, and flexibility for broadband network deployments.

The SFP+ interface allows for seamless integration with a wide range of fiber optic modules, providing flexible connectivity options for various network architectures. The OLT supports both XGPON and GPON standards, enabling service providers to offer high-speed internet access, voice, and video services to their customers.

The Combo OLT C+ features advanced management capabilities, including remote configuration and monitoring, ensuring efficient network operation and maintenance. It also boasts excellent security features to protect against unauthorized access and ensure the integrity of network data.

Overall, the Gigac SFP+ XGPON & GPON Combo OLT C+ is an ideal solution for service providers seeking to deliver high-performance, cost-effective, and scalable broadband services to their customers.

features:

1. Integrated Solution: The Combo OLT C+ combines the functionalities of both XG-PON OLT and GPON OLT optical transceiver into a single SFP+ package, providing a seamless integration for both technologies.

2. ITU-T Compliance: The unit complies with ITU-T G.984.5 (2014)/Amd.2 (10/2020) standards for both GPON and XGS-PON, ensuring compatibility with industry-standard network architectures and ensuring interoperability.

3. High-Speed Data Links: It supports high-speed bi-directional data links with transmission rates of Tx1: 9.953Gbps, Rx1: 2.488Gbps, Tx2: 2.488Gbps, and Rx2: 1.244Gbps, delivering exceptional bandwidth and performance.

4. Advanced Lasers and Receivers: The Combo OLT C+ incorporates a 1577nm continuous-mode transmitter with an EML laser and a 1490nm continuous-mode transmitter with a DFB laser for precise and reliable optical transmission. It also features 1270nm and 1310nm burst-mode receivers with APD-TIA for enhanced signal reception.

5. Integrated Digital Diagnostic Monitoring: The unit offers a 2-wire interface for integrated digital diagnostic monitoring, allowing for real-time monitoring and management of the transceiver's performance and health.

6. Efficient Power Consumption: With a +3.3V power supply and a power consumption of 4W, the Combo OLT C+ offers energy-efficient operation, making it suitable for various deployment scenarios.

7. RoHS Compliance: The product is RoHS compliant with exemptions 7C(I), ensuring environmental friendliness and safety.

8. Long Reach Capability: With a reach of up to 20km, the Combo OLT C+ can effectively cover large areas, making it suitable for various network topologies.

9. Wide Operating Temperature Range: It can operate within a temperature range of 0~70°C or -40~85°C, ensuring reliable performance in diverse environmental conditions.

10. Flexible Pin-out Support: The Combo OLT C+ supports multiple pin-out configurations, including 20Pins (GCLP-0046-20CS1/GCLP-0046-20IS1) and 22Pins (GCLP-0046-20CS2/GCLP-0046-20IS2), providing flexibility for integration into different hardware platforms.

Overall, the SFP+ XGPON & GPON Combo OLT C+ offers a comprehensive set of features that make it a reliable and efficient solution for broadband network deployments, supporting both XG-PON and GPON standards with excellent performance and scalability.
