The GPON ONU SFP Transceiver is designed for Gigabit-capable Passive Optical Network（GPON）transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver. The transmitter section uses a 1310nm DFB laser and an integrated BM laser driver which designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature compensation circuit, which are used for keeping the launch optical power and extinction ratio constantover temperature and aging. The receiver section uses an integrated 1490nm APD photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status (active high). An integrated WDM coupler can separate 1490nm input light and 1310nm output light. The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.
Features
Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) ONU side: This transceiver is specifically designed for use on the Optical Network Unit (ONU) side of Gigabit-capable Passive Optical Networks (GPON). It enables high-speed data transmission and reception over optical fibers.
Integrated Single-fiber bi-directional optical subassembly: The transceiver incorporates a single-fiber bi-directional optical subassembly, which allows for both transmission and reception of optical signals over a single fiber, simplifying network architecture and reducing costs.

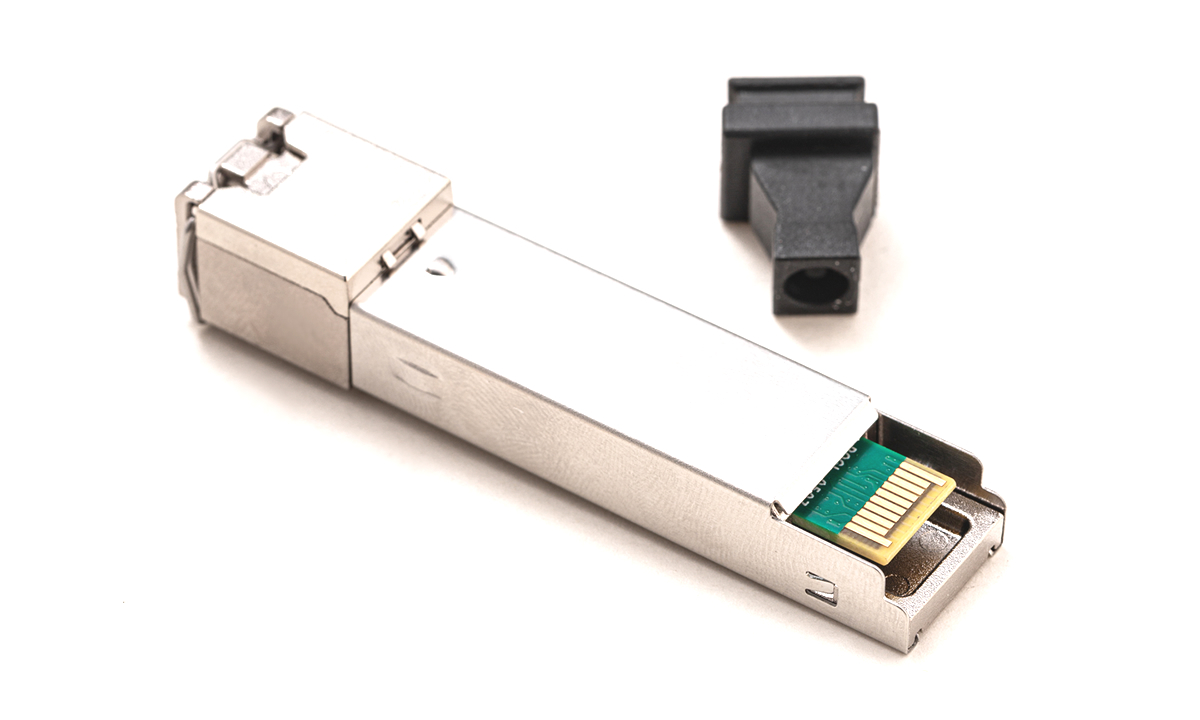

SFP Package with SC Receptacle: The transceiver is packaged in a standard SFP (Small Form-factor Pluggable) module, with an SC receptacle for easy installation and interconnection with optical fibers.
1310nm DFB laser Burst-mode Transmitter and 1490nm APD Continuous receiver (with WDM): The module utilizes a 1310nm Distributed Feedback (DFB) laser in burst-mode for transmission and a 1490nm Avalanche Photodiode (APD) for continuous reception. The integration of Wavelength Division Multiplexing (WDM) technology allows for simultaneous transmission and reception over the same fiber.
+3.3V single power supply: The transceiver operates on a single +3.3V power supply, simplifying power management and reducing the overall power consumption of the system.
Low power consumption: The transceiver is designed to consume low power, which is crucial for maintaining energy efficiency and reducing heat generation in network equipment.
Operating case temperature: The transceiver is designed to operate within a wide temperature range. The standard operating case temperature is from 0°C to +70°C, while the industrial-grade version can operate in extreme conditions, from -40°C to +85°C.
Applications
GPON ONU B+: This transceiver is ideal for use in Gigabit-capable Passive Optical Network (GPON) Optical Network Unit (ONU) B+ applications. It provides a reliable and efficient solution for high-speed data transmission and reception in GPON networks, supporting a wide range of telecommunications and networking applications.
General
The GPON ONU SFP Transceiver is specifically designed for Gigabit-capable Passive Optical Network (GPON) transmission. It combines state-of-the-art technology to ensure reliable and efficient data transmission over optical fibers.
Module Composition
The module incorporates a 1310nm burst-mode transmitter and a 1490nm continuous-mode receiver. This combination allows for seamless transmission and reception of data over the same optical fiber, reducing costs and complexity.
Transmitter Section
The transmitter section utilizes a 1310nm Distributed Feedback (DFB) laser for precise and stable optical signal generation. An integrated Burst Mode (BM) laser driver is designed to achieve minimal burst enable/disable delay time, ensuring rapid and responsive transmission of data packets.
To maintain consistent optical performance, the laser driver incorporates digital Automatic Power Control (APC) and temperature compensation circuitry. These features work together to keep the launch optical power and extinction ratio constant over a wide range of temperatures and aging effects.
Receiver Section
The receiver section employs an integrated 1490nm Avalanche Photodiode (APD) photodiode and preamplifier. This combination offers high sensitivity and low noise, ensuring reliable detection of incoming optical signals.
An additional feature is the signal-detected status indicator, which is active high. This function provides a convenient way to monitor the receiver's operational status, indicating when a valid signal is being received.
WDM Coupler
An integrated Wavelength Division Multiplexing (WDM) coupler separates the 1490nm input light (from the receiver) and the 1310nm output light (from the transmitter). This allows for simultaneous transmission and reception over a single fiber, maximizing bandwidth utilization and reducing infrastructure complexity.
Package and Compliance
The transceiver is packaged in a metallic housing that guarantees excellent Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) characteristics. This ensures reliable operation in various environments and compliance with international standards.
Overall, the GPON ONU SFP Transceiver offers a robust and efficient solution for Gigabit-capable Passive Optical Network transmission, supporting high-speed data communication in a wide range of telecommunications and networking applications.
Order Information
| Part No. | Data Rate （Tx/Rx） | Wavelength (Tx/Rx) | Optical Interface | DDMI | Temp. | Notes |
| GGNS-3142-20xBL(Note1) | 1.25G/2.5G | 1310nm/1490nm | SC | YES | SC | C/I |
| GGNS-3142-20xBS(Note1) | 1.25G/2.5G | 1310nm/1490nm | SC | YES | SC | C/I |
