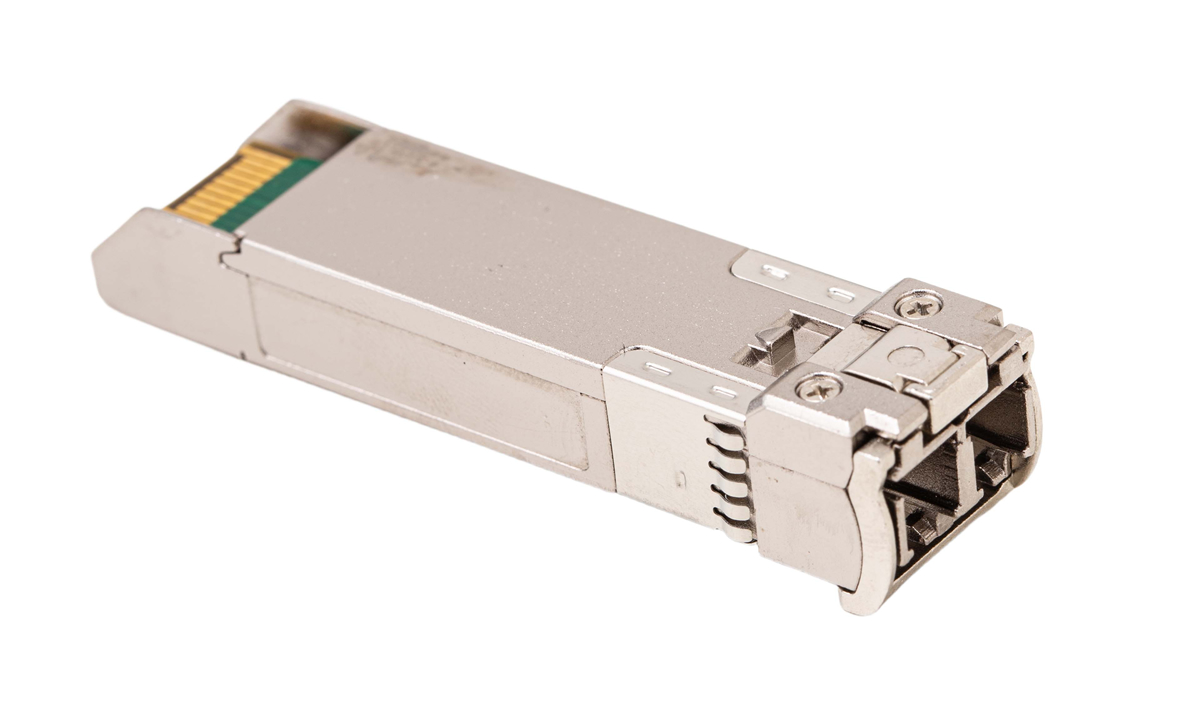

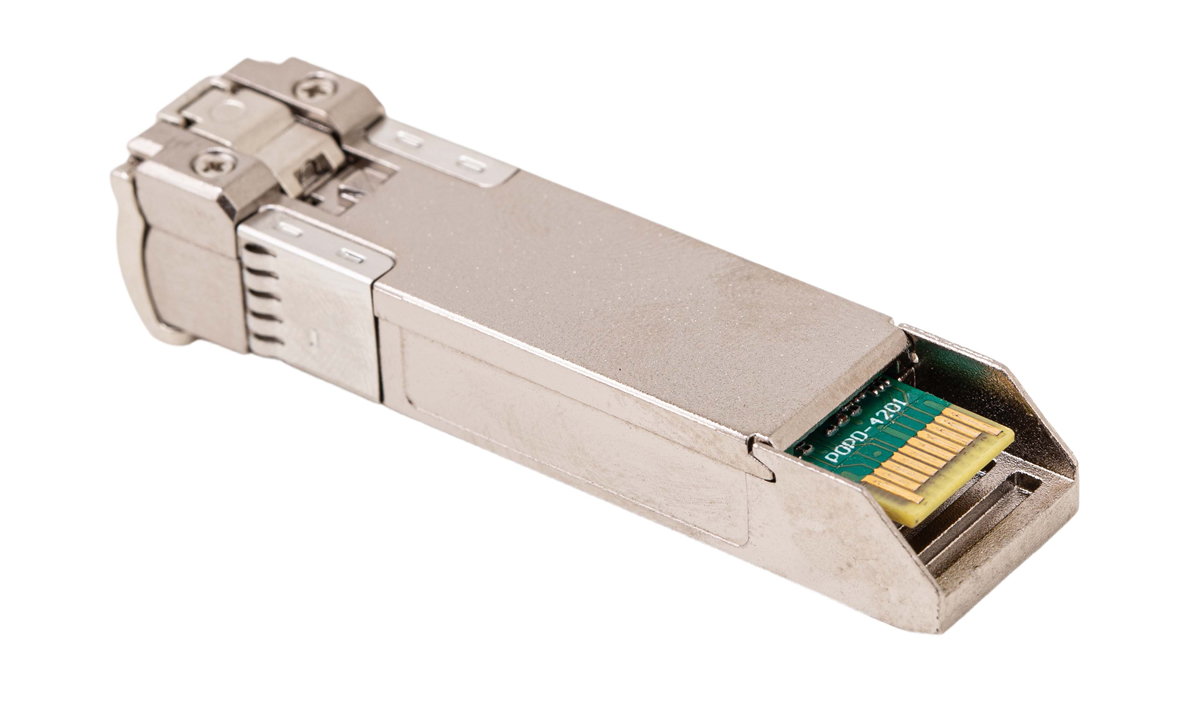

The dual-fiber series DWDM SFP+ optical module is a type of SFP (Small Form-factor Pluggable) optical module that adopts Dense Wavelength Division Multiplexing (DWDM) technology. This module utilizes dense wavelength division multiplexing technology to multiplex optical signals of different wavelengths into a single optical fiber for data transmission. At the transmitting end, multiple optical carriers with different wavelengths carrying different signals are coupled into a single optical fiber through a multiplexer for transmission; at the receiving end, these optical signals of different wavelengths are separated by a demultiplexer and processed separately, thereby realizing the simultaneous transmission of multiple signals over a single optical fiber.
The wavelength spacing of DWDM optical modules is very narrow, usually 0.4nm or 0.8nm. A DWDM system can support up to 80 or even more wavelength channels on a single optical fiber, and each channel can support rates up to 10Gbps, 25Gbps, or even higher. It is very suitable for long-distance and large-capacity transmission requirements, and is applicable to the interconnection between wide area networks (WAN) and data centers.
Product Features:
Supports transmission rates of 1.25Gb/s, 2.5Gb/s, 3.125Gb/s, 6.25Gb/s, 10Gb/s, and 25Gb/s
SFP+ package, supports hot swapping
Single-channel dual-fiber bidirectional, LC optical interface
SFI electrical interface
3.3V single power supply
Transmits DWDM wavelength
Transmission distance over SMF can reach 160 kilometers
Signal input/output CML level
Low EMI and excellent electrostatic discharge protection
Customizable with CDR function, supports optical and electrical loopback functions
Built-in Digital Diagnostic Monitoring (DDM) function
Product grade:
Military Grade (J): -40°C to +85°C
Military Extended Grade (M): -55°C to +85°C
Applications:
Ethernet switches and routers
Fiber optic switch infrastructure
DWDM networks
Other optical links
Product Ordering Information Sheet:
| model number | rate | wavelength | Transmission distance | Fiber optic types | Data diagnosis | Interface | Operating temperature (Note 1) |
| DTACP**-11LE*1 | 1.25G | DWDM | 40km | Single-mode | have | LC | J/M |
| DTACP**-11LZ*1 | 1.25G | DWDM | 80km | Single-mode | have | LC | J/M |
| DTACP**-11LK*1 | 1.25G | DWDM | 100km | Single-mode | have | LC | J/M |
| DTACP**-11LQJ1 | 1.25G | DWDM | 120km | Single-mode | have | LC | -40°C~+85°C |
| DTACP**-11LQJ1A(注4) | 1.25G | DWDM | 120km | Single-mode | have | LC | -40°C~+85°C |
| DTACP**-22LE*1A3 | 2.5G | DWDM | 40km | Single-mode | have | LC | J/M |
| DTACP**-22LHK1 | 2.5G | DWDM | 60km | Single-mode | have | LC | -45°C~+85°C |
| DTACP**-22LZ*1A3 | 2.5G | DWDM | 80km | Single-mode | have | LC | J/M |
| DTACP**-22LQ*1A3 | 2.5G | DWDM | 120km | Single-mode | have | LC | J/M |
| DTACP**-22LR*1A3 | 2.5G | DWDM | 150km | Single-mode | have | LC | J/M |
| DTACP**-33LEJ1A3 | 3.125G | DWDM | 40km | Single-mode | have | LC | -45°C~+85°C |
| DTACP**-99LE*1 | 10G | DWDM | 40km | Single-mode | have | LC | J/M |
| DTACP**-99LE*144 | 10G | TX:DWDM；RX:850 | 40km | Single-mode | SMF/MMF | LC | J/M |
| DTACP**-99LZ*1 | 10G | DWDM | 80km | Single-mode | have | LC | J/M |
| DTATP**-99LE*1 | 10G | DWDM | 10m | SMF | have | LC | J/M |
| DTATP**-99LZ*1 | 10G | DWDM | 20km | SMF | have | LC | J/M |
| DTRCP**-99LE*144 | 10G | TX:DWDM；RX:850 | 40km | Single-mode/Multi-mode | have | LC | J/M |
| DTRCP**-99LZ*144 | 10G | TX:DWDM；RX:850 | 80km | Single-mode/Multi-mode | have | LC | J/M |
| DTRCP**-99LK*144 | 10G | TX:DWDM；RX:850 | 100km | Single-mode/Multi-mode | have | LC | J/M |
