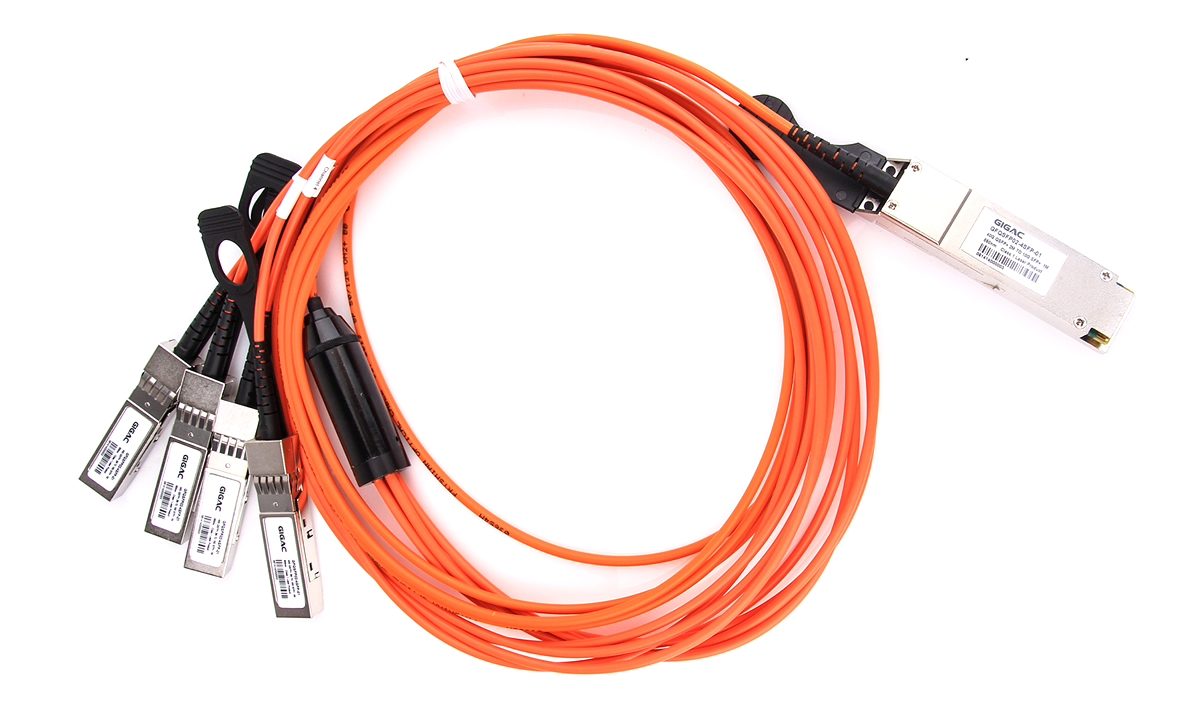

Gigac Technology's 40G QSFP+ to 4xSFP+ high-speed cable assemblies (DTQPP-Q4P* series) utilize a hot-swappable QSFP+/SFP+ form factor, supporting splitting a single 40Gbps port into four independent 10.3Gbps channels. Compliant with the QSFP+ MSA standard, they utilize 24/30AWG copper cable for transmission lengths up to 7 meters. They support a single +3.3V power supply, a wide operating temperature range of 0-70°C (case temperature), and integrated DDM diagnostics. Flexible cable length options are available: cable lengths (0.5-7 meters) are identified by the last three digits of the model number (e.g., 025 = 2.5 meters), and the cable diameter automatically matches the cable length (30AWG ≤ 3 meters, 24AWG > 3 meters). Designed specifically for 40G Ethernet architectures in data centers, they can directly connect to 40G switches and 10G SFP+ devices. They are ideal for server cluster expansion and heterogeneous network convergence, significantly reducing network upgrade costs and cabling complexity.
Product Features
Hot-swappable QSFP+/SFP+ form factor
10.3 Gbps per channel
QSFP+/SFP+ MSA compliant
Maximum transmission distance up to 7 meters
Single +3.3V power supply
Operating temperature: 0-70°C
Applications
Data Center
40G Ethernet
| Part Number | Data Rate | Distance | Temp (note:1) |
| DTQPP-Q4P*(note2)***(note3)-Z8 | 40G | 7m | 0°C~+70°C |
Note 1: Case temperature.
Note 2: Cable AWG specification: I = 30AWG (L ≤ 3 meters), C = 24AWG (3 meters < L ≤ 7 meters). For example, the 2.5-meter model is DTQPP-Q4PI025, and the 7-meter model is DTQPP-Q4PC07.
Note 3: Cable length: For example, 01 = 1 meter, 03 = 3 meters. Non-integer lengths are expressed using three digits, with the last digit being a decimal. For example, 035 = 3.5 meters, 005 = 0.5 meters. For example, the 2.5-meter model is DTQPP-Q4PI025, and the 7-meter model is DTQPP-Q4PC07.
Module dimensions (unit: mm, tolerance for unspecified dimensions is ±0.2 mm)
The connector is compatible with SFF-8436 and SFF-8432 specifications.
