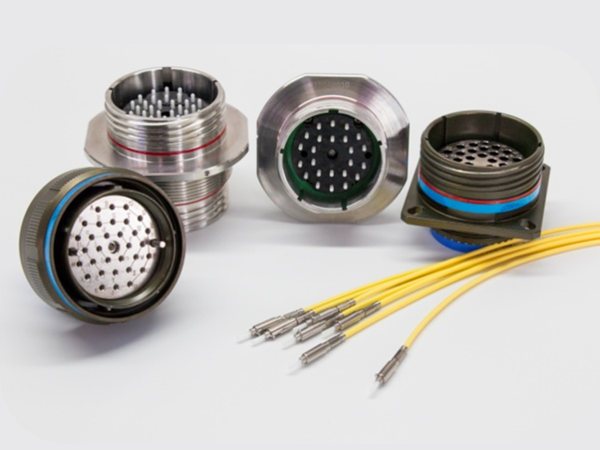

J599A8 (ARINC801) Series Fiber Optic Connectors

The interface dimensions comply with the GJB599B (MIL-DTL-38999) Series III, and the performance meets the ARINC801 standard.

It is suitable for use in aviation, electronics, naval vessels, and other systems for multi-channel optical communication.

It employs standard 1.25mm ceramic ferrules, ensuring high mating accuracy.

The ceramic sleeve packaging array allows for overall disassembly and replacement, facilitating ease of use and maintenance.

The contact installation and removal tool M81969/14-03 is convenient to operate.

Mechanical Properties:

• Mechanical Life: 500 cycles of insertion and extraction
• Shock Resistance: Peak acceleration of 2940m/s² with a duration of 3ms and a velocity change rate of 5.61m/s
• Vibration Resistance: 10Hz to 2000Hz, with a power spectral density of 0.4G²/Hz, resulting in a root mean square (RMS) acceleration of 23.1G
• Tensile Strength: ≥68N (for 2mm contact jumper wire)

Environmental Performance:

• Temperature Range: -55°C to +125°C (based on optical cable temperature)
• Salt Spray Resistance:

• Class K: 500 hours

• Class F: 48 hours

• Class W: 500 hours

• Class MW: 192 hours (acidic atmosphere)
  • Hermeticity (suitable for hermetic transfer sockets): Gas leakage rate ≤1×10-9 Pa.m³/s, with an internal and external pressure difference of 1 atmosphere

Optical Performance:

• Insertion Loss: ≤0.6dB
• Return Loss:

• ≥ 20dB @ 850nm

• ≥ 40dB @ 1310nm

Contact Arrangement (Illustrated by the Plug Mating Surface)
