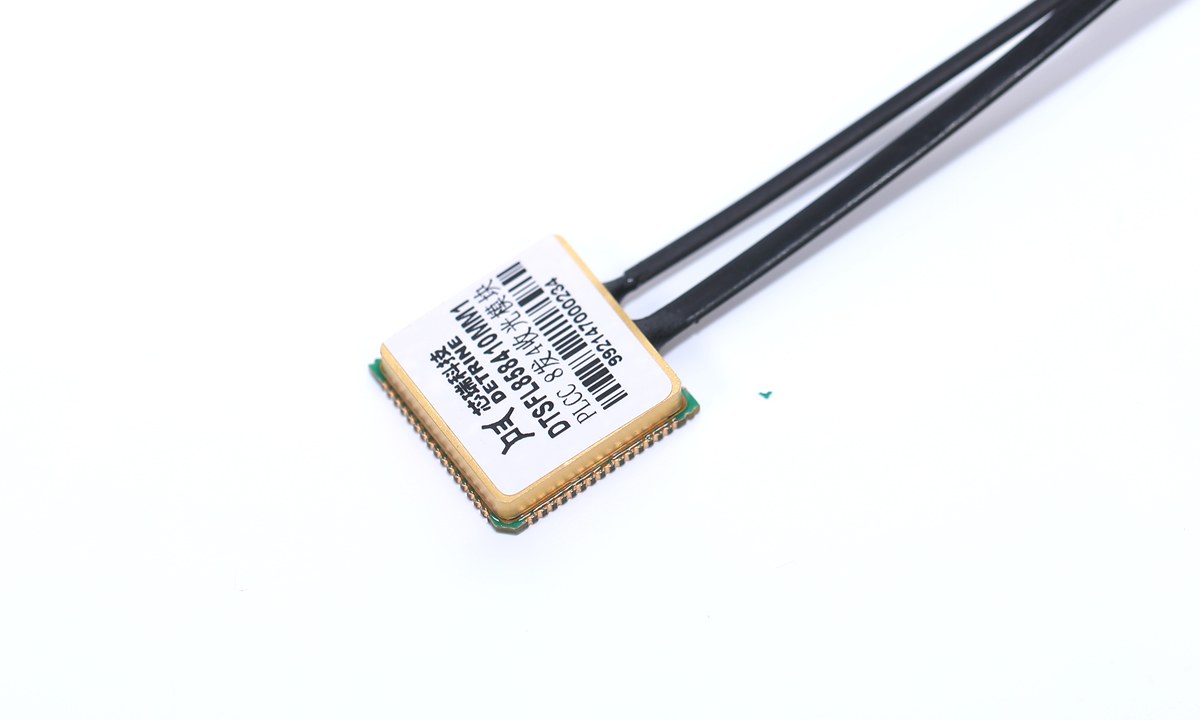

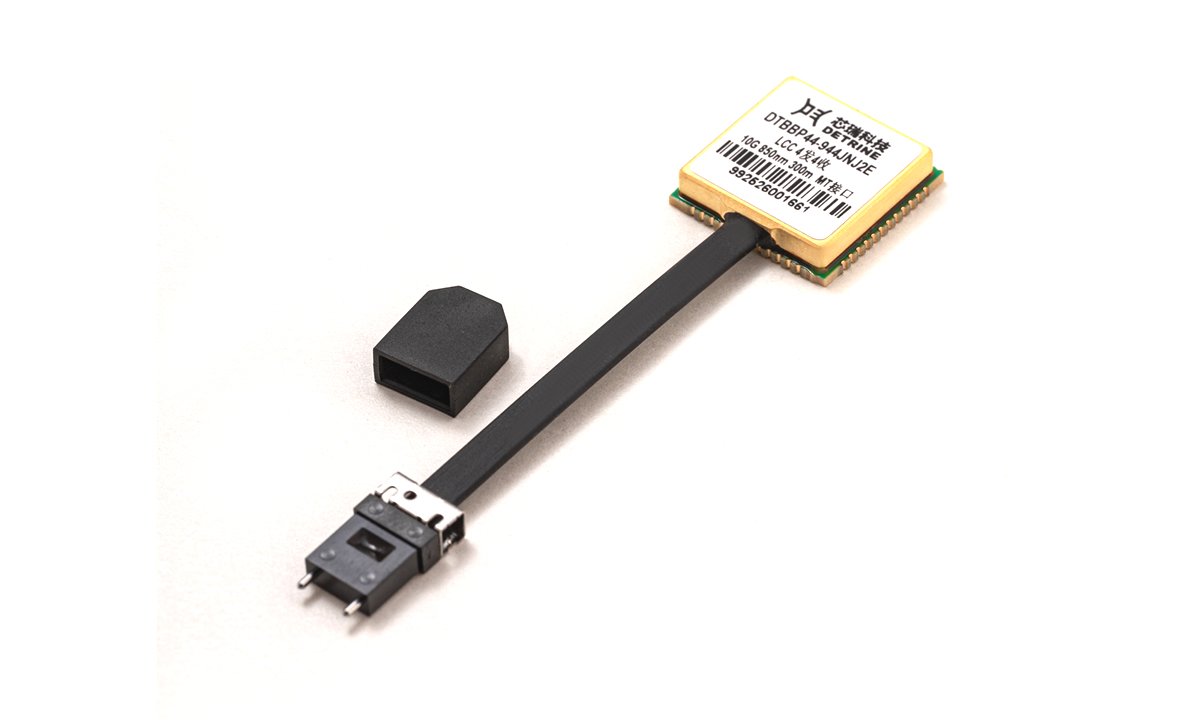

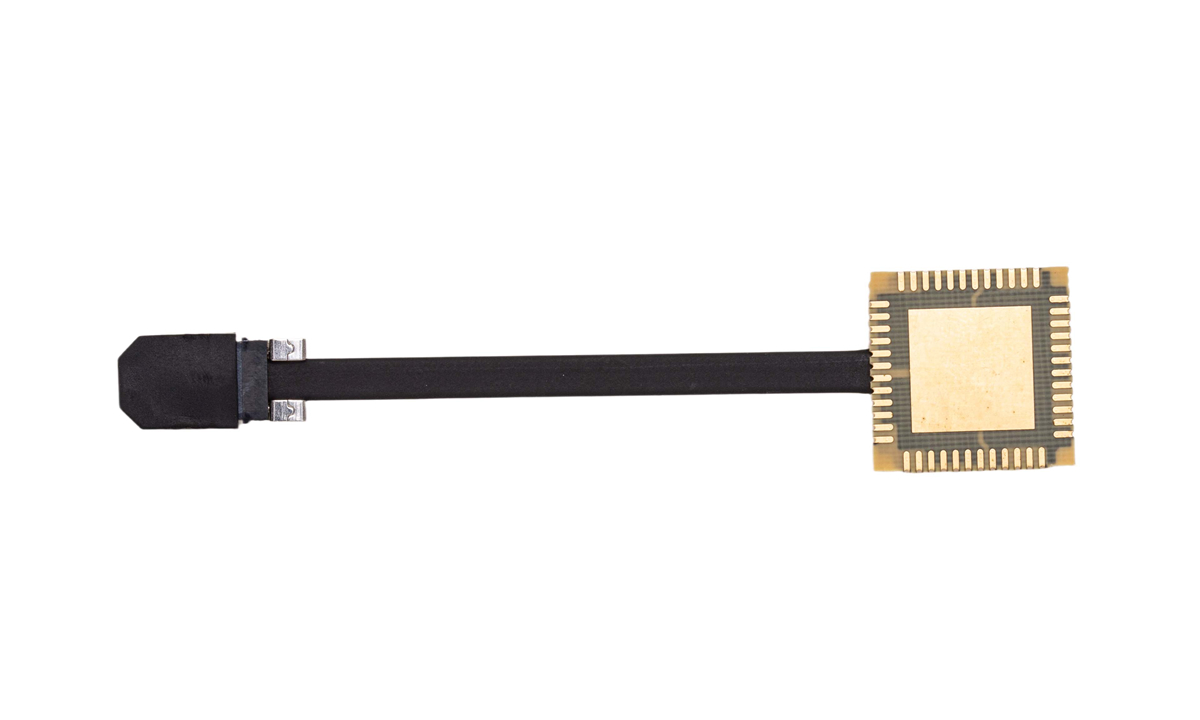

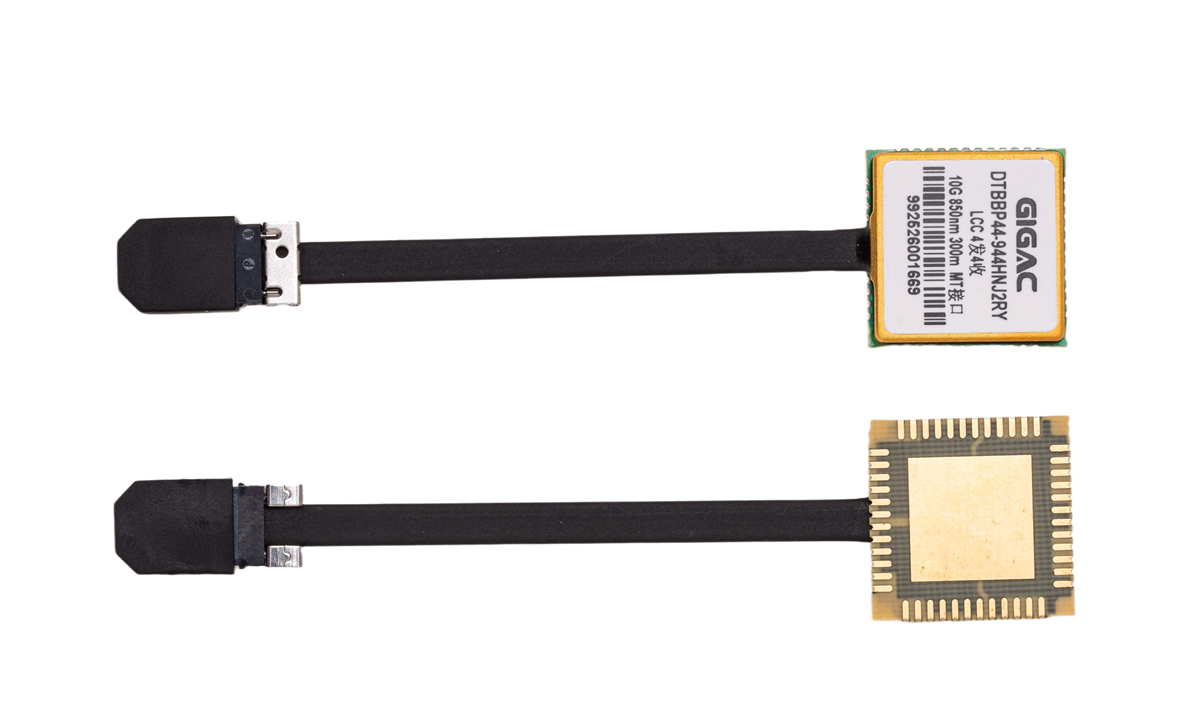

GIGAC Technology's Gecko Series 10G 850nm 8-channel transmit pigtail pluggable module in LCC48 package focuses on the integrated application of microwave and photon technologies. This module is equipped with 8-channel parallel fiber transmission channels, with a single channel supporting a rate of 10.3125Gbps, and can transmit up to 100m over OM3 multimode fiber. There are various types of optical fibers available, including flat fibers, round fibers, and loose fibers. The pigtail is pluggable and its end interface can be customized, with the MT interface (to be ordered separately) recommended for regular use.
Product Features:
8-channel parallel optical fiber channel transmission
Supports single-channel transmission at a rate of 10.3125Gbps
OM3 multimode optical fiber transmission distance of 100m
Options include flat fiber, round fiber, loose fiber, with spring, and with guide pin
Pigtails are pluggable, and the end pigtail interface can be customized; the conventional recommendation is the MT interface (pigtails need to be ordered separately)
Single 3.3V power supply
Data differential signal input with CML level
I2C serial data interface for communication monitoring
Compact structure design, high density and high capacity
Hand-soldered
Application:
Support for high-speed data communication connections over very short distances
Interconnection between servers and storage arrays
Airborne radar
Other optical links
Ordering Information:
| Model number | Rate | Wavelength | Distance | Fiber | Interface | Temp(Note 1) |
| DTBTT44-98XSNJ2 | 10.3125Gbps | 850nm | 100m | Multimodal | MT | -40℃~+85℃ |
| DTBTT44-98XSNM2 | 10.3125Gbps | 850nm | 100m | Multimodal | MT | -55℃~+85℃ |
