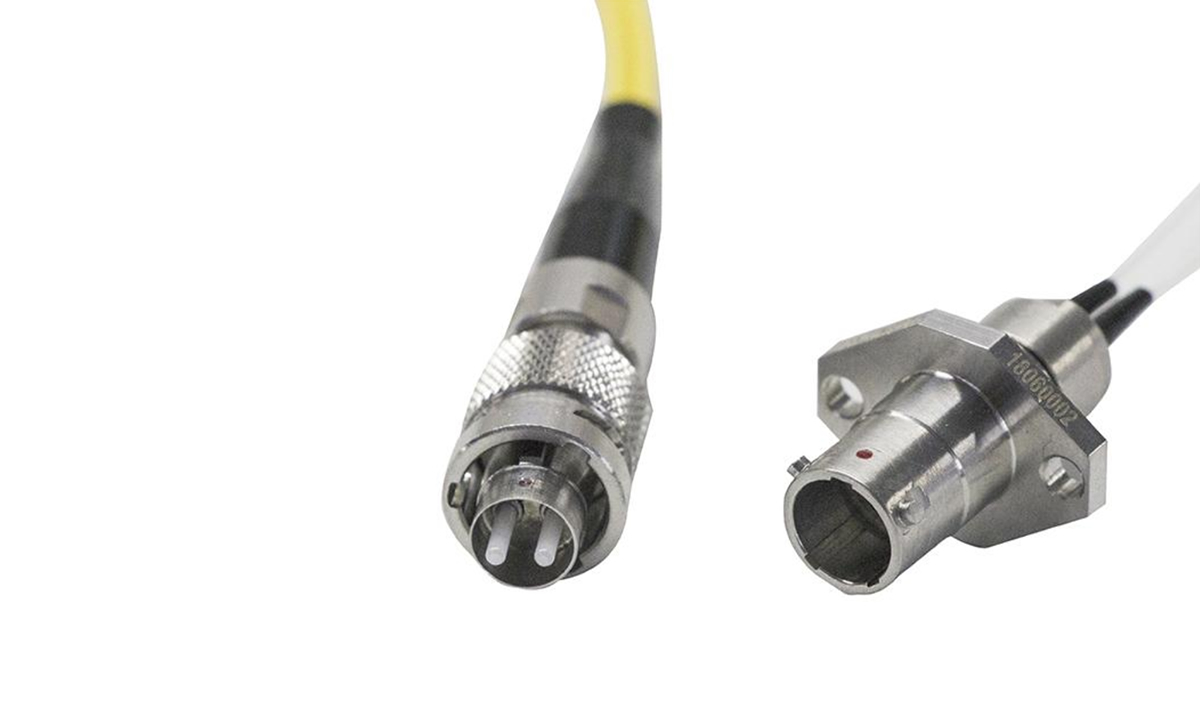

JYS Fiber Optic Connector-Aviation Connector

The JYS series fiber optic connectors use three-button positioning and have blind-insertion and anti-misinsertion functions, which can achieve quick bayonet connection, effectively improving connection efficiency and reducing the risk of misinsertion. The optical alignment of the JYS connector achieves precise docking through ceramic pins and sleeves, ensuring low insertion loss and high return loss, guaranteeing efficient and stable transmission of optical signals, and the insertion loss is usually ≤0.5dB. The JYS connector housing can be made of different materials and coatings to adapt to different environmental requirements. It has strong environmental resistance and can operate stably in an operating environment of -40℃~+85℃. It also has good shock resistance, vibration resistance and salt spray protection, and can adapt to a variety of harsh environments such as electronics, aviation, weapons, and ships. The JYS series fiber optic connectors are small in size and compact in structure, which has great advantages in application scenarios with limited space.

The JYS series fiber optic connectors can be used for trunk transmission in telecommunications networks, metropolitan area networks, and fiber-to-the-home. They also ensure high-speed data transmission in data center equipment interconnections. They connect devices in automated production lines and power system monitoring, ensuring signal quality through interference immunity. In military communications and aerospace systems, they ensure reliable optical signal transmission in complex and harsh environments. In optical and physics experiments, the JYS series fiber optic connectors precisely transmit optical signals and secure experimental data transmission, meeting high-precision requirements.

Product Introduction

Suitable for use in electronic, aviation, military, naval, and other systems, with strong environmental endurance capabilities, replacing FC, LC, and other civilian active connectors.
The outer shell can be made of various materials and coatings to adapt to different environmental requirements.
Three-key positioning, featuring blind mating and error-proof insertion capabilities.
Quick bayonet connection.
Optical alignment is achieved through precision mating of ceramic ferrules and sleeves.
Adapter socket, freeing from the constraints of optical cables.

Mechanical Properties

• Mechanical Life: 500 cycles of insertion and removal
• Shock Resistance: Acceleration of 2940m/s²
• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 0.2G²/Hz
• Tensile Strength: ≥68N (for contact elements compatible with Φ2 optical cables)

Environmental Performance

• Temperature Range: -55°C to +85°C (depending on the optical cable temperature)
• Salt Spray: Class K: 500 hours, Class F: 48 hours

Optical Performance

• Insertion Loss: ≤0.5dB

Plug Dimensions

	JYSK22N02
	JYSK22N02D
	JYSK22N04
	JYSK22N15
	JYSK24N02
	JYSK2M12N
