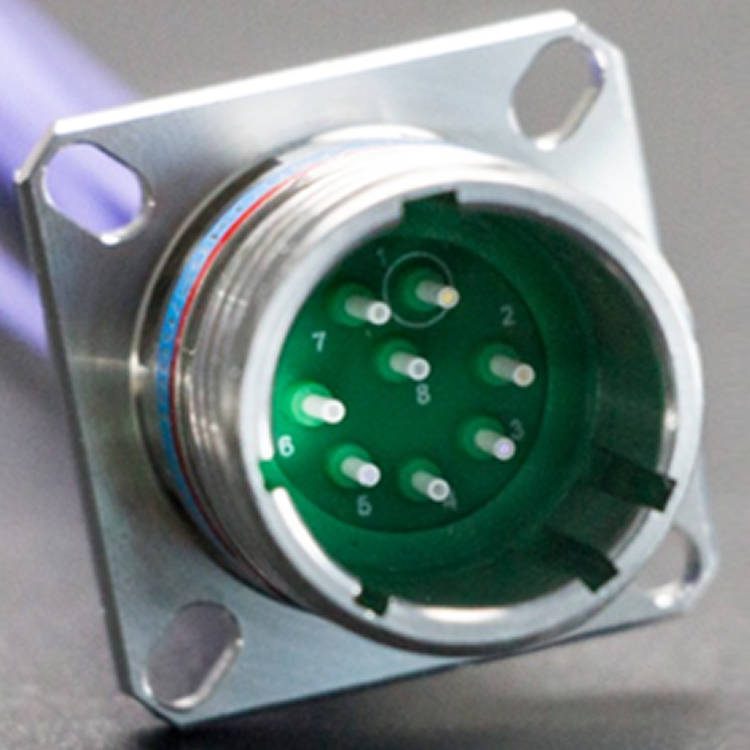

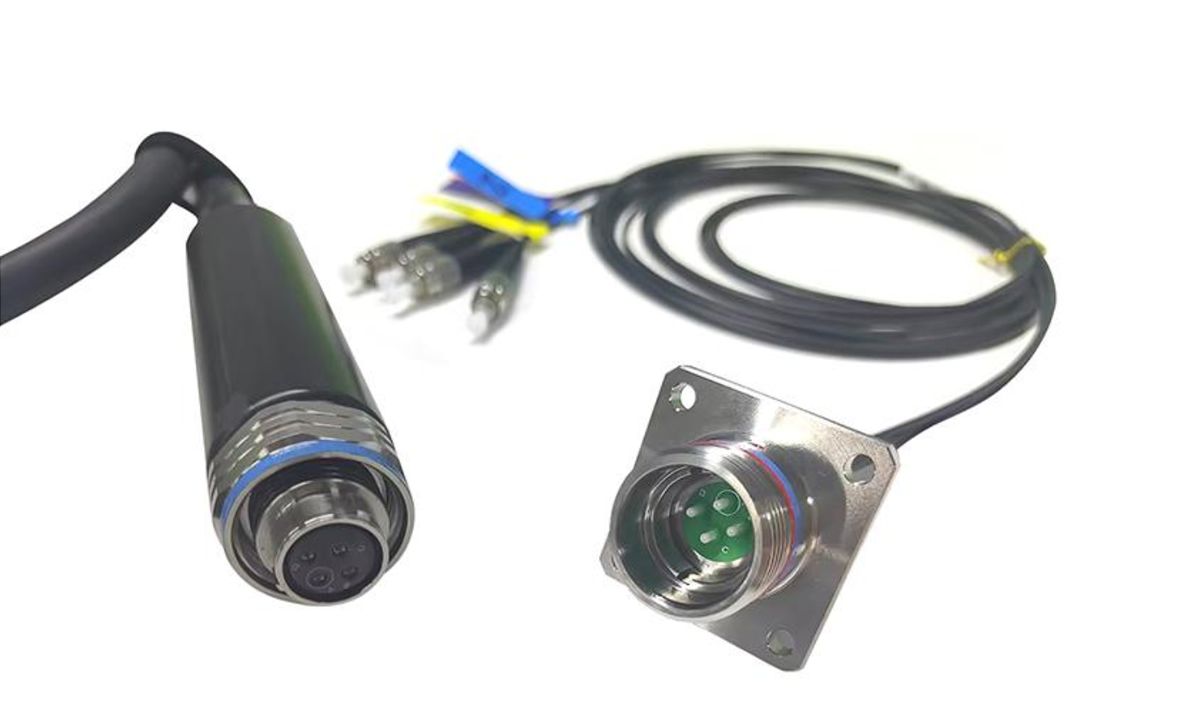

J599Ⅲ Series Expanded Beam Fiber Optic Connector

The J599 III series expanded beam fiber optic connector produced by Gigac Technology is a high-performance circular aviation connector designed for demanding military, aerospace, and industrial applications. This connector offers exceptional durability and reliability in harsh environments, ensuring secure and stable optical data transmission under extreme conditions.

Key Features:

• Standard-Compliant Interface: Fully complies with the GJB599B (MIL-DTL-38999) Series Ⅲ interface standard, ensuring broad compatibility and proven performance in critical systems.

• Configurable Environmental Protection: The outer shell can be customized with different materials and coatings to meet specific environmental needs—including corrosion, moisture, and chemical resistance.

• Quick-Lock Coupling Mechanism: Features a rapid three-start thread connection with an anti-loosening design, enabling fast and secure mating even in high-vibration settings.

• Error-Proof Blind Mating: The five-key polarization mechanism ensures correct alignment and prevents misplugging, supporting reliable connections in blind or restricted-access applications.

• Expanded Beam Non-Contact Technology: Incorporates collimating lenses to eliminate physical contact between fiber end faces. The expanded beam profile significantly reduces sensitivity to dust, scratches, and contaminants while enhancing mechanical longevity.

• High Durability: Designed to withstand repeated mating cycles with robust performance under mechanical stress.

Performance Specifications:

• Mechanical Properties:

• Mechanical Life: 2000 insertion and extraction cycles

• Shock Resistance: 980 m/s²

• Vibration Resistance: 10Hz–2000Hz at 147 m/s²

• Tensile Strength: ≥68N (single-core cable)




• Environmental Performance:

• Type K: 500 hours

• Type W: 500 hours

• Type F: 48 hours

• Type MW: 192 hours (acidic atmosphere)

• Operating Temperature Range: -55℃ to +85℃ (fiber dependent)

• Salt Spray Resistance:

• Fluid Resistance: Resists fuels, coolants, lubricants, and other industrial fluids.




• Optical Performance:

• Insertion Loss: ≤0.6dB (Multimode) / ≤1.2dB (Singlemode)

The J599Ⅲ Series Expanded Beam Connector combines rigorous military-standard construction with advanced optical technology to deliver unmatched reliability in mission-critical scenarios.

Outline Dimensions of Connectors with Tail Attachments

Plug

Angled Attachment Plug

Dimensions of Plug and Receptacle after Mating

Front-mounted Square Plate/Plug

Rear-mounted Square Plate/Plug
