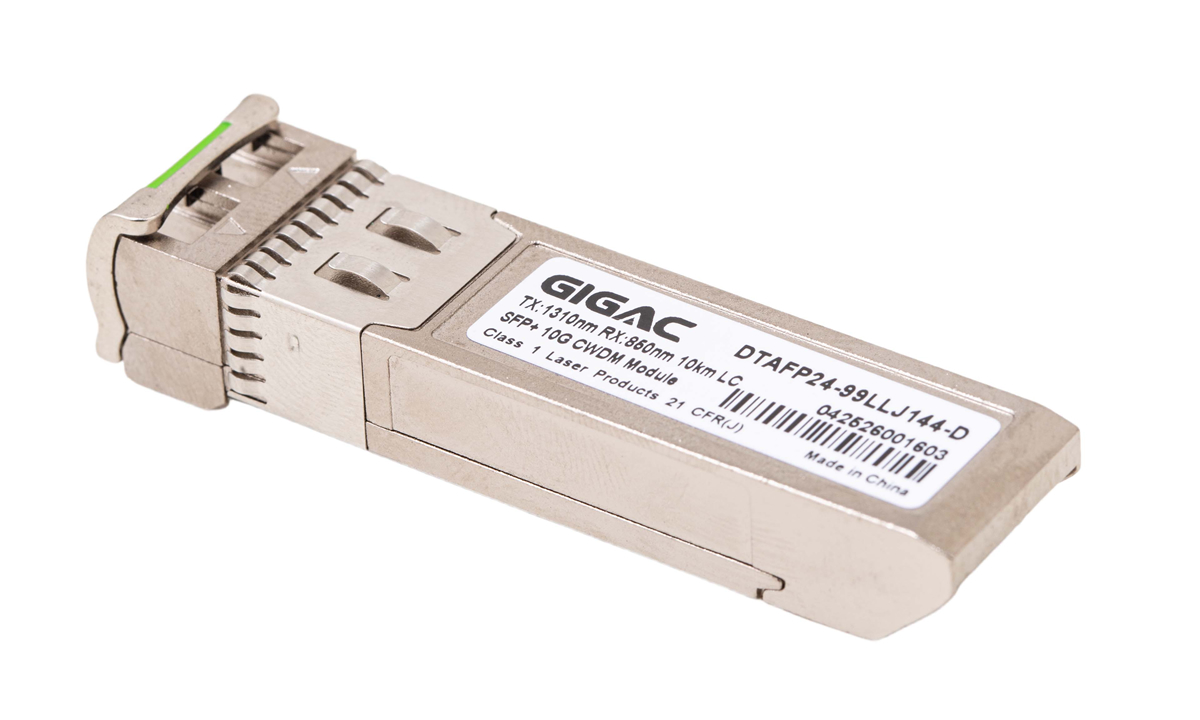

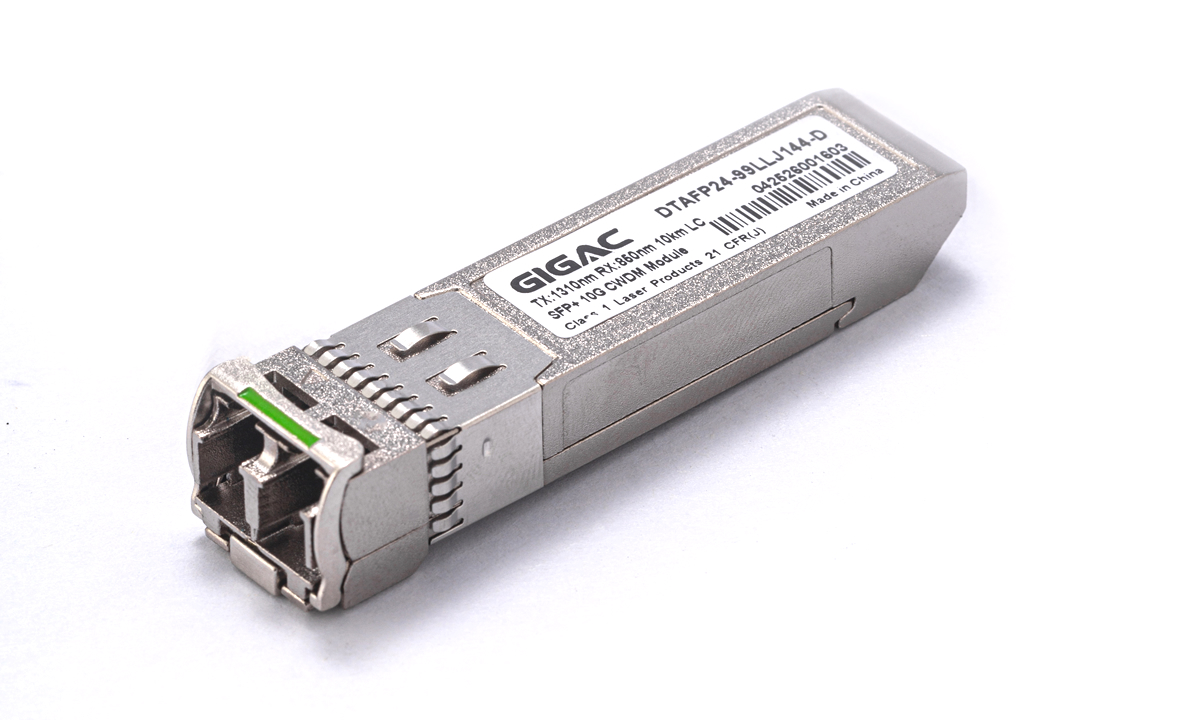

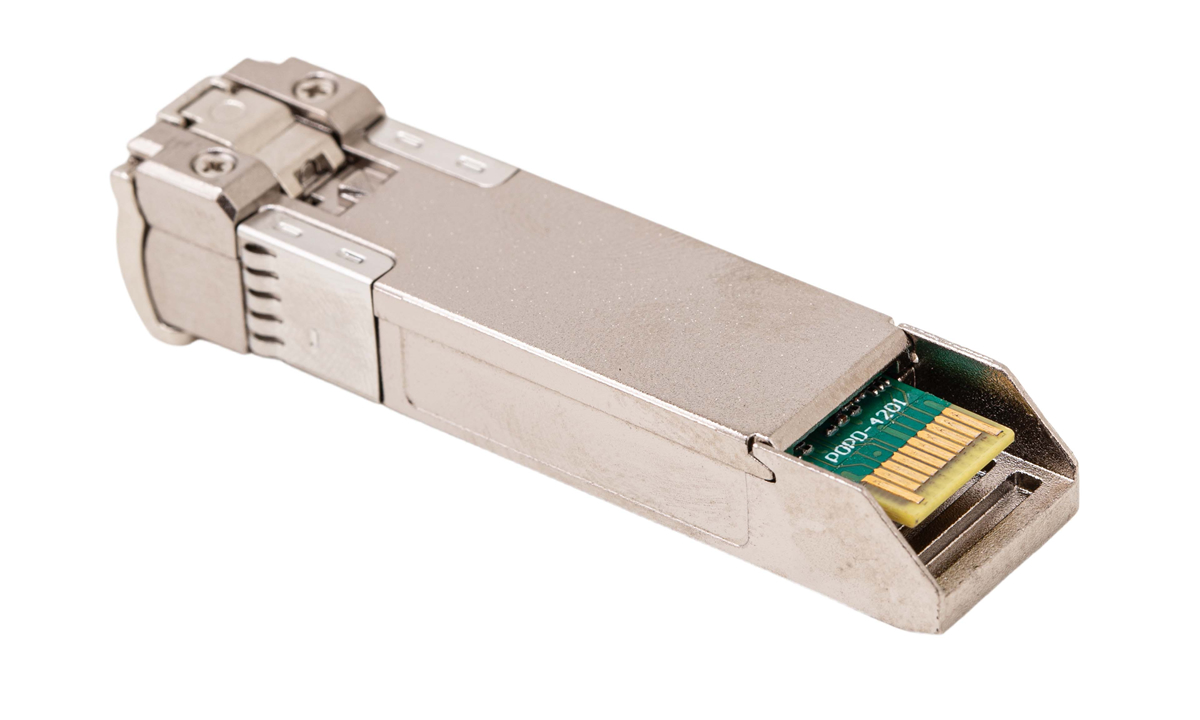

Dual-fiber Series CWDM SFP Optical Module

CWDM optical modules use optical multiplexers to cleverly multiplex optical signals of different wavelengths into a single optical fiber for transmission. At the receiving end of the link, the optical demultiplexer accurately decomposes the mixed signals in the optical fiber into signals of different wavelengths, which are then connected to the corresponding receiving devices. This sophisticated process greatly enhances the flexibility, economy, and reliability of networking, laying a solid foundation for the construction of efficient communication networks.

The wavelength coverage of CWDM optical modules ranges from 1270nm to 1610nm, with a wavelength interval of 20nm forming a waveband, totaling 18 wavebands. In practical applications, the 1470nm - 1610nm waveband is the most commonly used. Different wavelengths can be distinguished by the color of the optical module's pull ring. This user-friendly design adopted by Coreray Technology for the CWDM series SFP optical modules greatly facilitates the identification of wavelengths used in gigabit Ethernet channel mapping, bringing many conveniences to user operations.

Product Features:

Supports transmission rates of 155Mb/s, 622Mb/s, 1.25Gb/s, and 2.5Gb/s

SFP package, duplex LC optical interface

Supports hot swapping

3.3V single power supply

Transmission distance over SMF can reach 160 kilometers

Low EMI and 4J electrostatic protection

Built-in Digital Diagnostic Monitoring (DDM) function

Product Grades:

Military Industrial Grade (J): -40°C/-45°C to +85°C
Military Extended Industrial Grade (M): -55°C to +85°C

Product Applications

Ethernet switches and routers

155Mb/s, 622Mb/s, 1.25Gb/s, 2.5Gb/s Fibre Channel

CWDM networks

Other optical links

Product Information Sheet：
