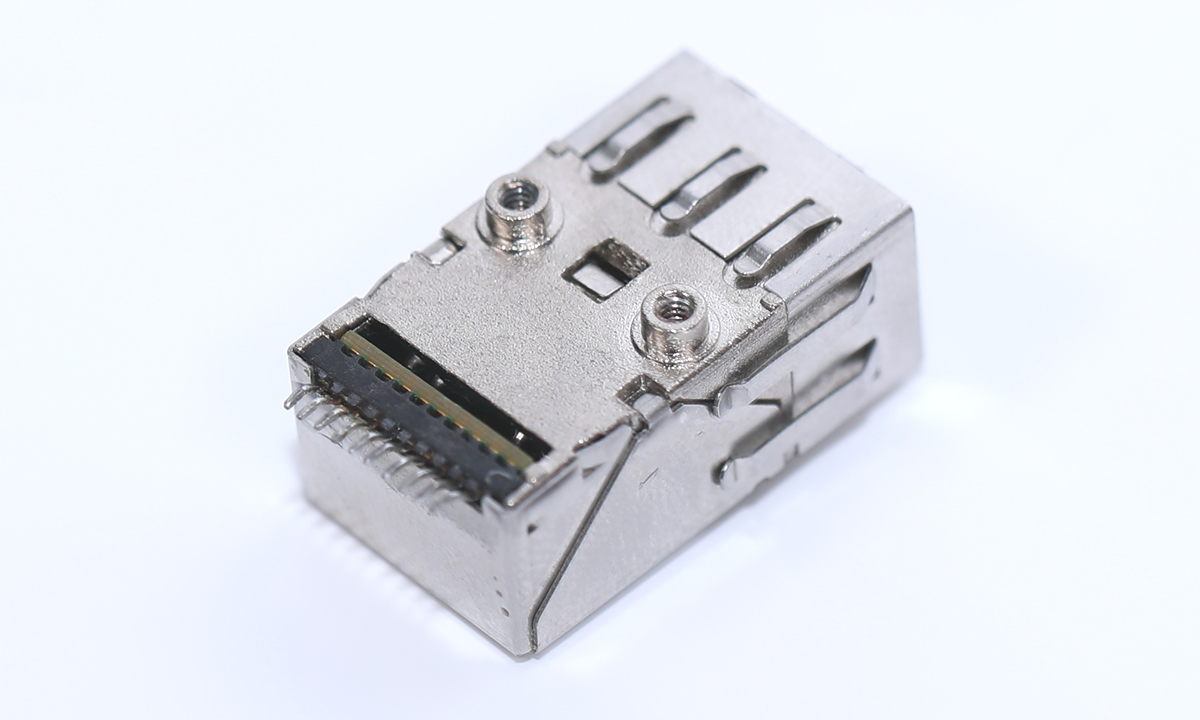

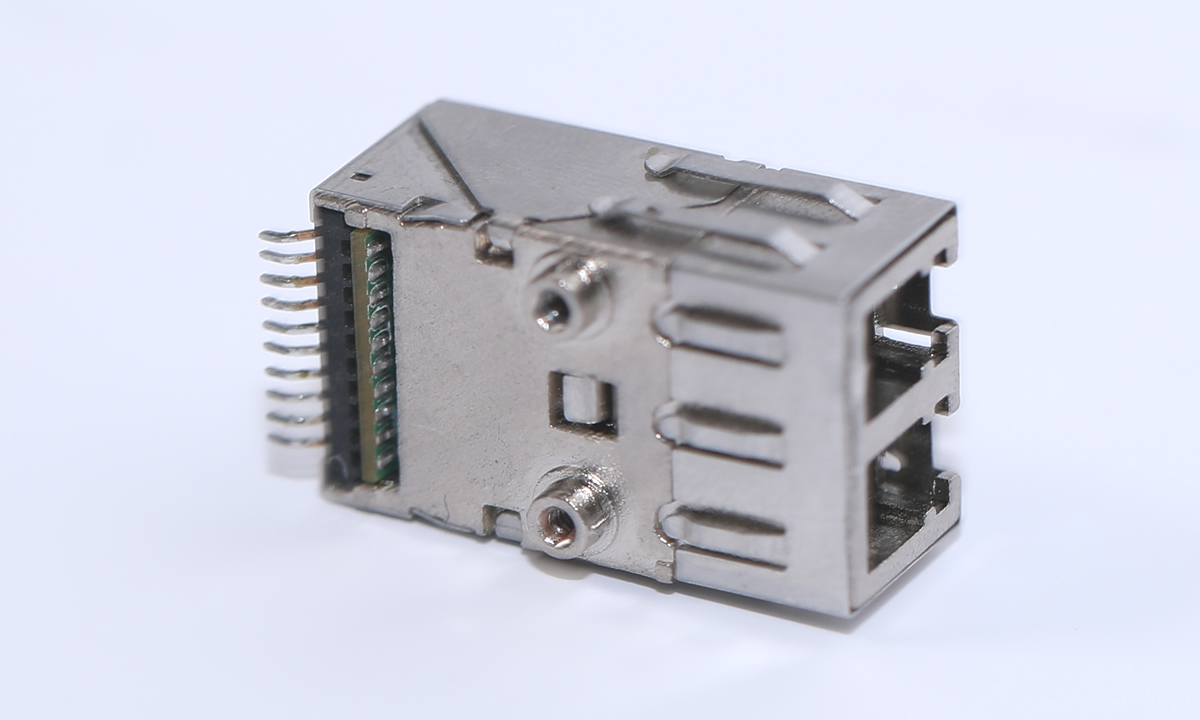

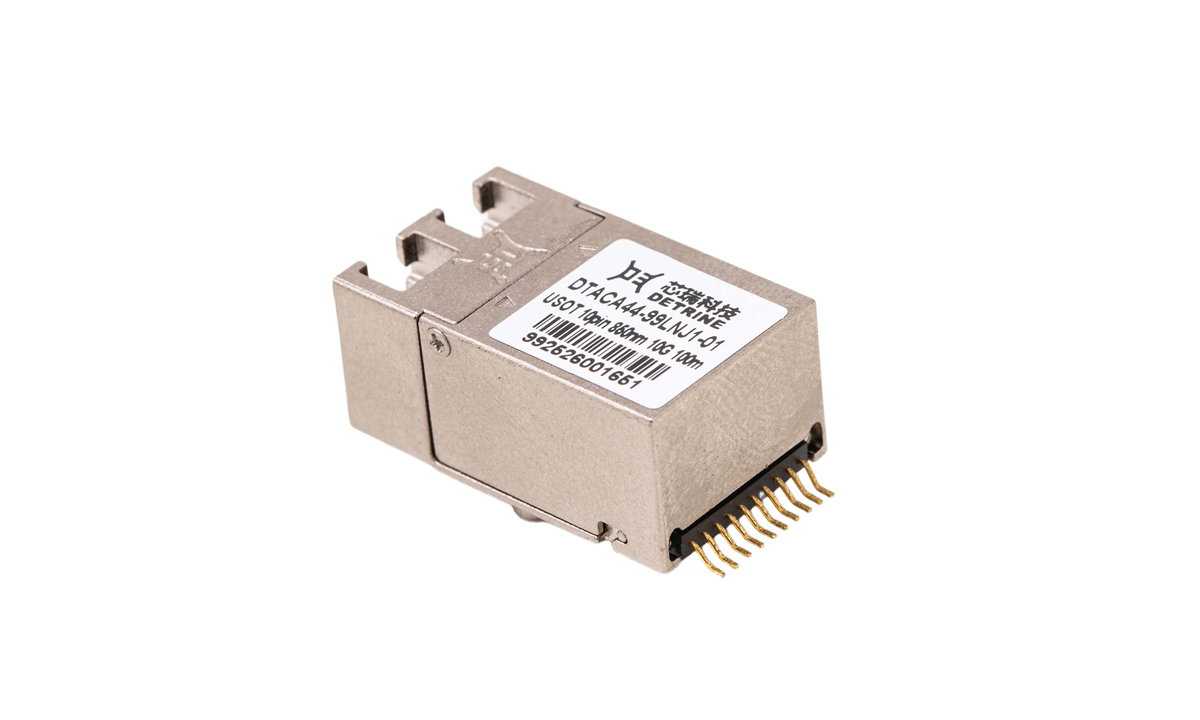

10-pin dual-fiber LC Mini-SFF optical transceiver module

Gigac Technology's 10-pin dual-fiber LC Mini-SFF optical transceiver module features an ultra-compact pluggable LC interface design, supporting multi-rate adaptive transmission from 100Mbps to 10Gbps. This module innovatively integrates surface mount technology with a CML logic level interface, operating from a single +3.3V power supply for high-speed signal integrity. Its all-metal armored housing and shock-resistant structure withstand extreme ambient temperatures from -55°C to 100°C (super-military grade), maintaining excellent stability under harsh conditions such as vibration and wide temperature ranges. Its groundbreaking miniaturized packaging reduces the size of traditional optical modules by 40%, making it ideal for high-density integration scenarios. Available in industrial-grade (-45°C to 85°C), military-grade (-55°C to 85°C), and super-military-grade versions, it meets the high-reliability military communication requirements of digital radar phased array systems and electronic countermeasures equipment. It also provides multi-rate, long-distance point-to-point optical transmission solutions for civilian applications such as 5G fronthaul and industrial interconnection, making it an ideal choice for building high-speed data links in complex electromagnetic environments.

Product Features:

LC pluggable design facilitates dynamic and flexible data connection configuration

Supported data rates: 100 Mbps, 155 Mbps, 622 Mbps, 1.25 Gbps, 2.5 Gbps, 3.125 Gbps, 4.25 Gbps, 6.25 Gbps, 10 Gbps

Uses 50/125 μm multimode fiber, with a maximum transmission distance of 2 km

Single-mode module with a maximum transmission distance of 160 km

Single +3.3 V power supply Power supply, signal input/output (CML logic level)

Surface mount pins for high-speed signal integrity

More compact design, ultra-small module size

High reliability, full metal housing, vibration-resistant design

Operating temperature:

J: -45°C to 85°C

M: -55°C to 85°C

Super military grade: -55°C to 100°C

Applications:

Digital radar arrays

High-demand countermeasure equipment

High-reliability, high-data-rate point-to-point fiber-optic communications

Product Ordering Information Sheet:

Module package dimensions:

Units are millimeters. Unmarked dimensions have a tolerance of ±0.2 mm.
