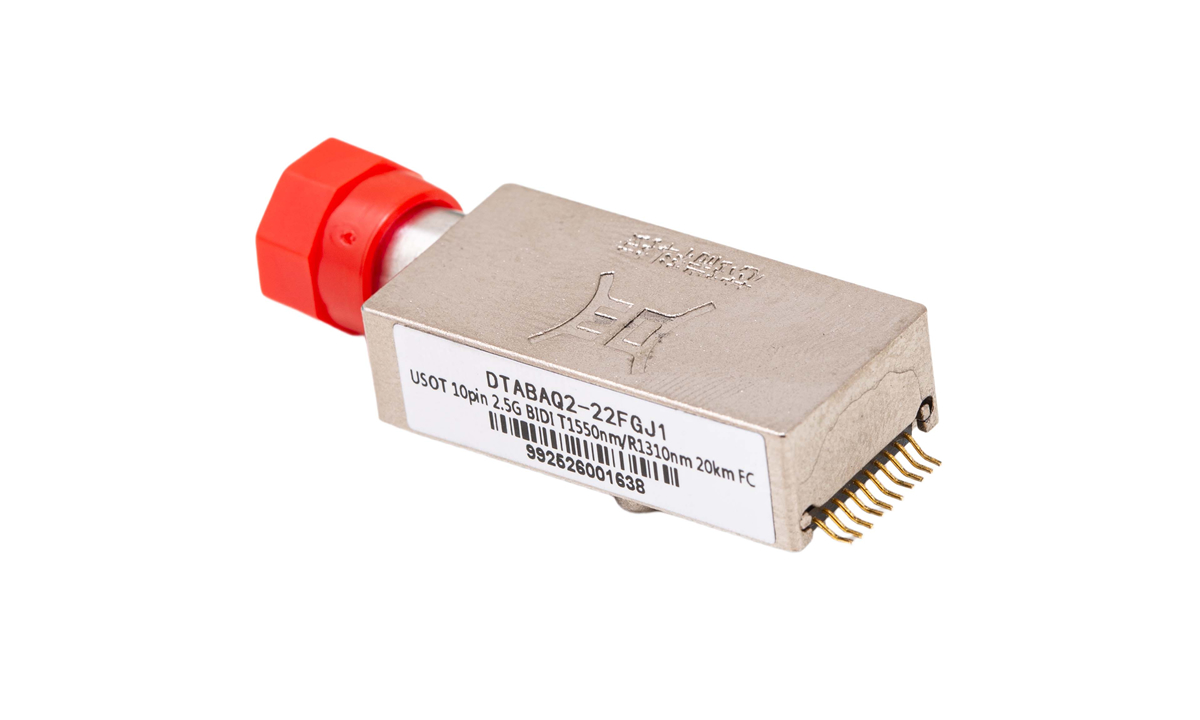

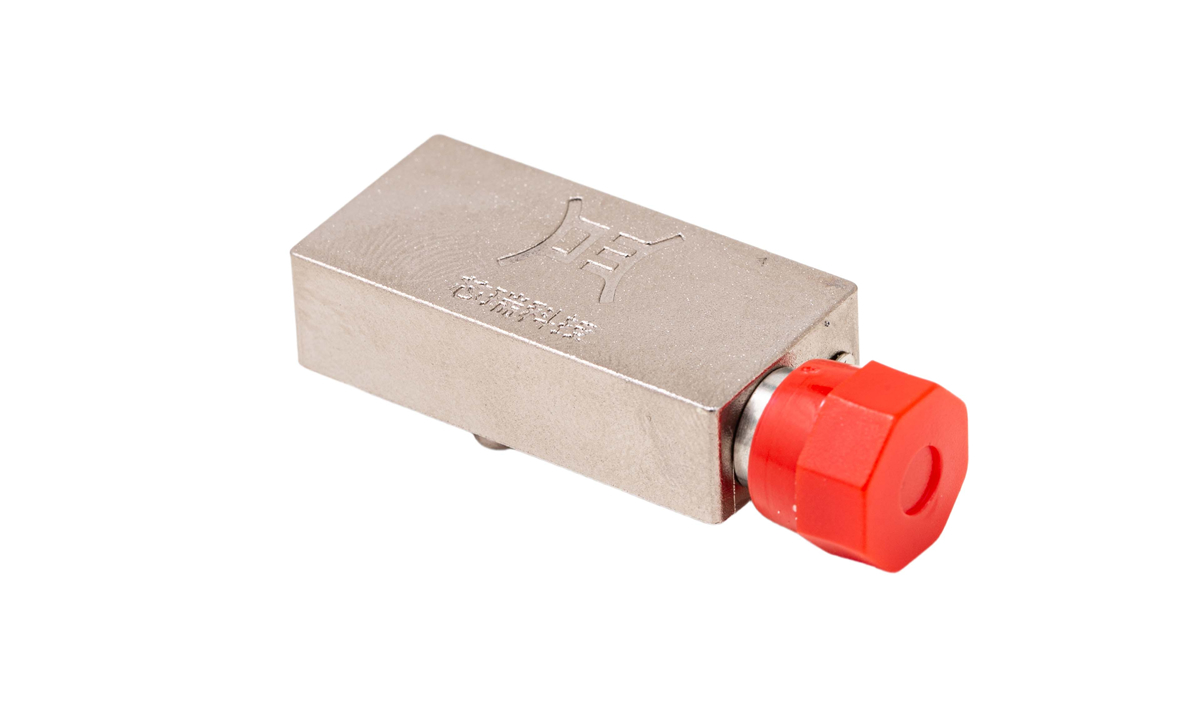

The Mini-SFF optical module, also known as the Ultra Small Outline Transceiver (USOT), features a 10-pin BIDI (single-fiber bidirectional) FC interface. This compact optical communication component is designed for high-density, high-efficiency fiber-optic transmission. Its key feature is bidirectional data transmission using a single optical fiber. By integrating wavelength division multiplexing (WDM) technology, the transmitter and receiver use different wavelengths (such as 1310nm/1550nm or 1490nm/1550nm) to transmit both uplink and downlink signals simultaneously over a single fiber, significantly conserving fiber resources and reducing cabling complexity. The module features an FC-type optical connector with a metal threaded locking mechanism, ensuring a secure connection and strong vibration resistance. It is suitable for industrial environments or communication scenarios requiring high reliability.
This module uses a 10-pin electrical connector. The pinout typically covers power (Vcc, GND), data transmission (TX), reception (RX), signal detection (LOS/TSD), and control functions, and is compatible with standard communication protocols. Its USOT package (likely an ultra-small optical module) features low power consumption and high integration, supporting SFP or similar form factors, making it easy to deploy in high-density ports on switches, routers, and other devices. Applications include fiber-to-the-home (FTTH), 5G fronthaul, data center interconnection, and long-distance transmission, offering both cost-effectiveness and transmission efficiency.
Product Features
Surface-mount USOT 10-pin package
Single-fiber bidirectional, FC optical interface
Supports 10.3125 Gbps transmission rate
Transmission distances of 10 km and 20 km are optional
Single 3.3V power supply
Signal input/output CML levels
Extremely low EMI and excellent ESD protection
Product Grades:
Military Industrial Grade (J): -40°C/-45°C to +85°C
Military Extended Industrial Grade (M): -55°C to +85°C
Applications
Digital radar arrays
High-demand countermeasure equipment
High-reliability, high-data-rate point-to-point fiber-optic communications
Other optical links
Compliant with Class I laser safety standard IEC-60825
ROHS 2.0
Product Ordering Information Sheet:
| Model | Speed | Wavelength | Distance | Fiber Type | Interface | Temperature |
| GABA-2196-10X(1)X(2)X(3)X(4) | 10.3125Gbps | T1270nm R1330nm | 10km | Single mode | Plug-in FC or pigtail optical interface | C/I |
| GABA-1296-10X(1)X(2)X(3)X(4) | 10.3125Gbps | T1330nm R1270nm | 10km | Single mode | Plug-in FC or pigtail optical interface | C/I |
| GABA-3596-10X(1)X(2)X(3)X(4) | 10.3125Gbps | T1310nm R1550nm | 10km | Single mode | Plug-in FC or pigtail optical interface | C/I |
| GABA-5396-10X(1)X(2)X(3)X(4) | 10.3125Gbps | T1550nm R1310nm | 10km | Single mode | Plug-in FC or pigtail optical interface | C/I |
| GABA-2196-20X(1)X(2)X(3)X(4) | 10.3125Gbps | T1270nm R1330nm | 20km | Single mode | Plug-in FC or pigtail optical interface | C/I |
| GABA-1296-20X(1)X(2)X(3)X(4) | 10.3125Gbps | T1330nm R1270nm | 20km | Single mode | Plug-in FC or pigtail optical interface | C/I |
Note 1: Case temperature. "x" = default indicates the module operating temperature is 0°C to +70°C. "x" = I indicates the module operating temperature is -40°C to +85°C.
Note 2: "x" = default indicates no conformal coating. "x" = Y indicates conformal coating.
Note 3: "x" = F indicates a pluggable FC optical port. "x" = A indicates a pigtailed FC/UPC port. "x" = C indicates a pigtailed SC port. "x" = G indicates a pigtailed LC port. "x" = P indicates a pigtailed ST port. "x" = J indicates a pigtailed MT port.
Note 4: "x" indicates the pigtail length. For standard pigtail length codes, see Table 2. Plug-in FC optical ports are default.
