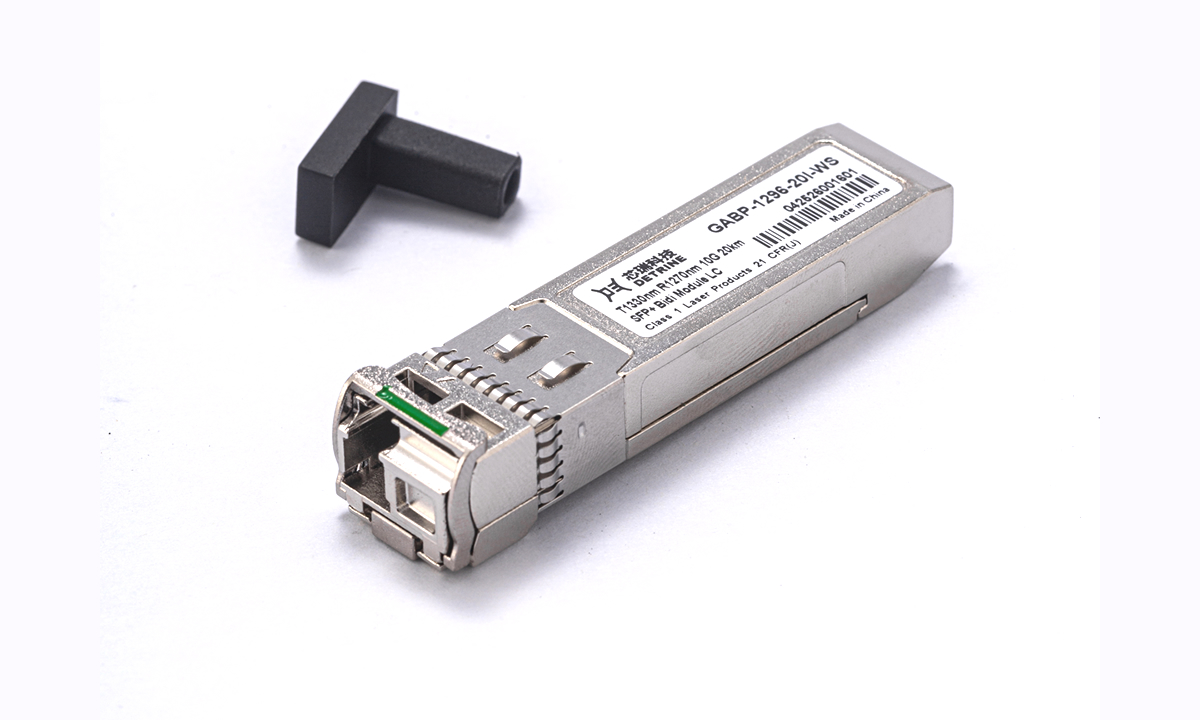

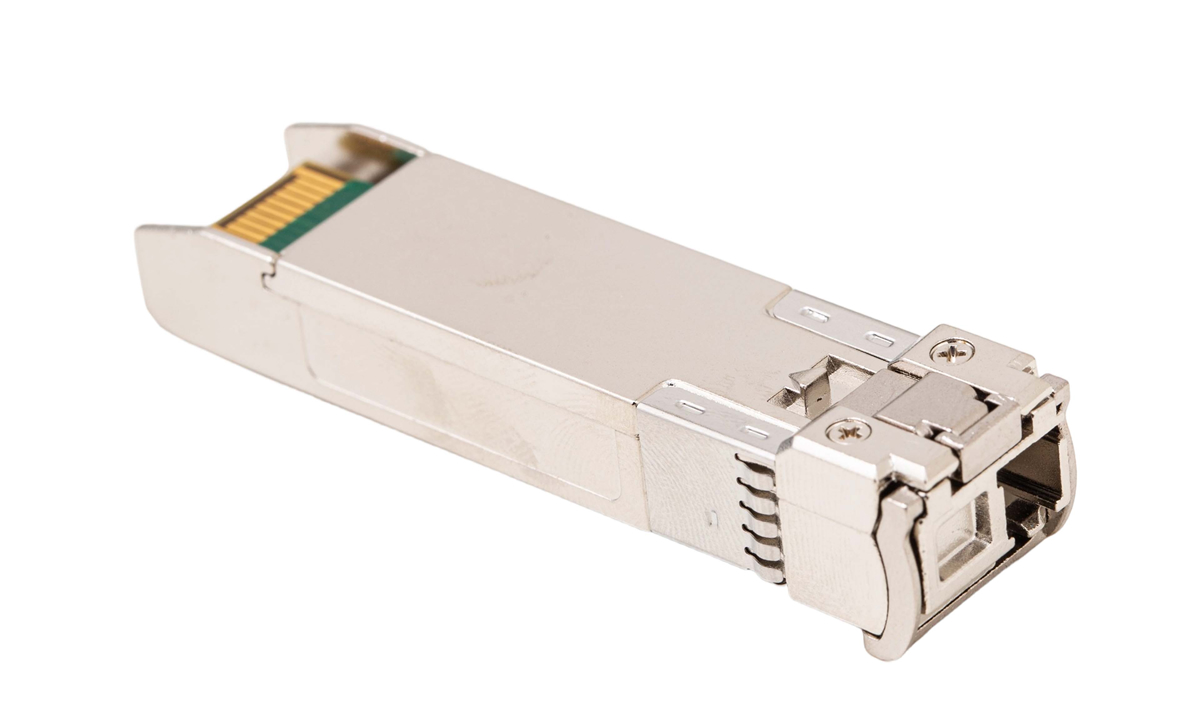

The 1.25Gbps BIDI CSFP Optical Receiver 10Km DDM optical module supports a data transfer rate of 1.25 Gbps and is suitable for various network applications such as Ethernet and fiber optic communication. Realize bidirectional transmission through BIDI technology, using different wavelengths to simultaneously send and receive signals on a single fiber. Supports a maximum transmission distance of 10 kilometers (10 km), suitable for fiber optic networks that require long-distance transmission. This optical module complies with the Compact Small Package (CSFP) standard and has high-density and flexible deployment options. Integrated with digital diagnostic monitoring (DDM) function, it can monitor various parameters such as optical power, temperature, voltage in real-time, providing enhanced performance monitoring and troubleshooting capabilities.
1.Features
1250Mbps Typical Data Rate and compliant to 1000Base BX10 IEEE802.3ah
1310nm FP laser transmitter for GACC-3412-10D 1490nm DFB laser transmitter for GACC-4312-10D
PIN photo-detector Upto 10km on 9/125μm SMF
Hot-pluggable CSFP footprint
LC/UPC type pluggable optical interface
Achieve operational compatibility with conventional SFP
Metal enclosure, for lower EMI
RoH Scompliant and lead-free
Single +3.3V power supply
Support Digital Diagnostic Monitoring interface
Compliant with SFF-8472
Case operating temperature: Industrial/Commercial optional, 0°C to+70°C
2.Applications
Gigabit Ethernet (1000BASE-BX10)
Point to Point FTTH Application
Switched Backplane Applications
Router/ServerInterface
Switch to Switch Interface
