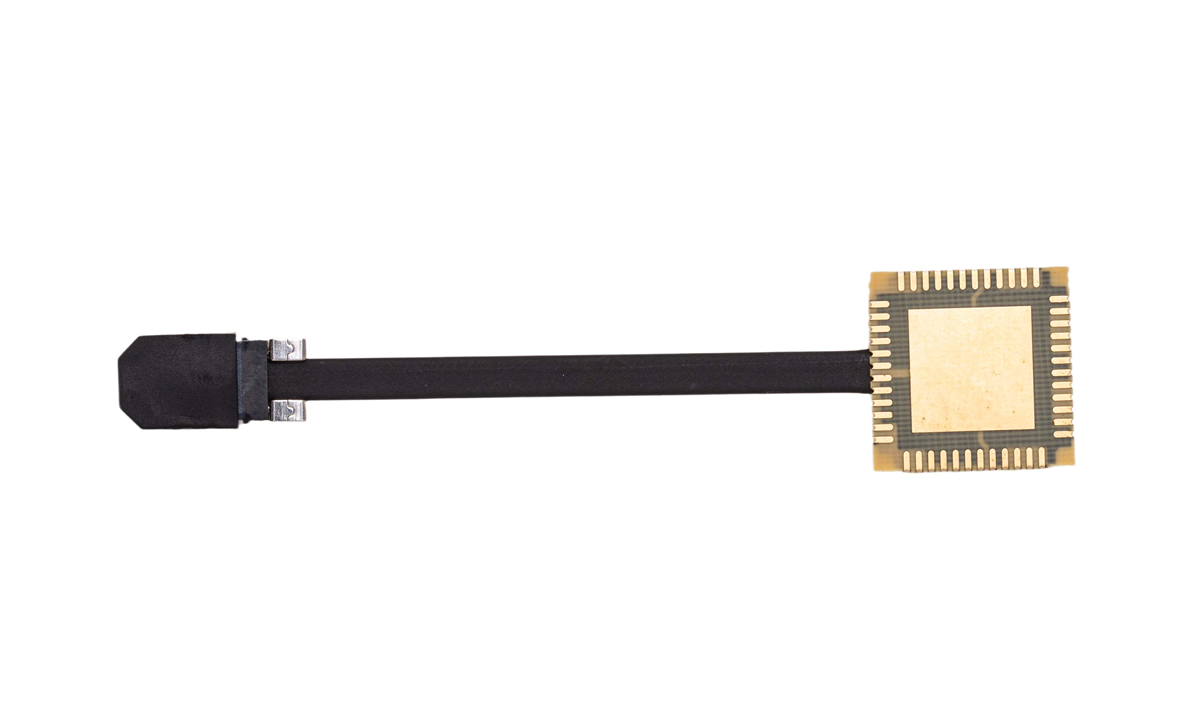

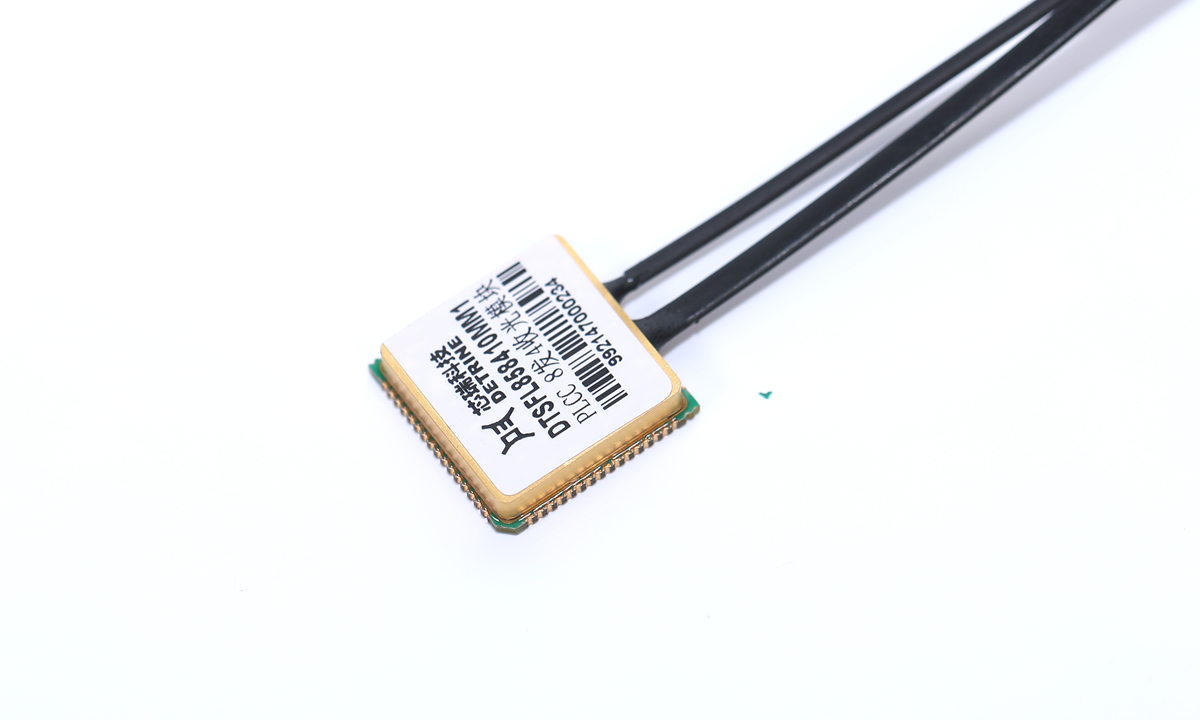

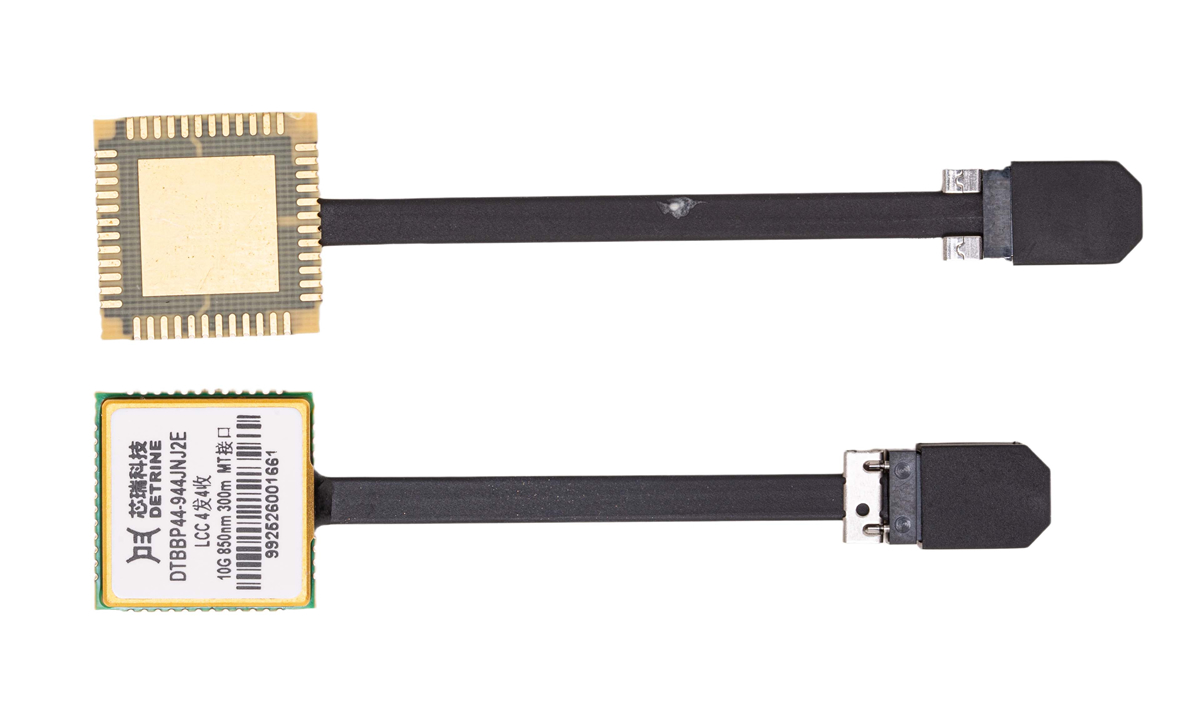

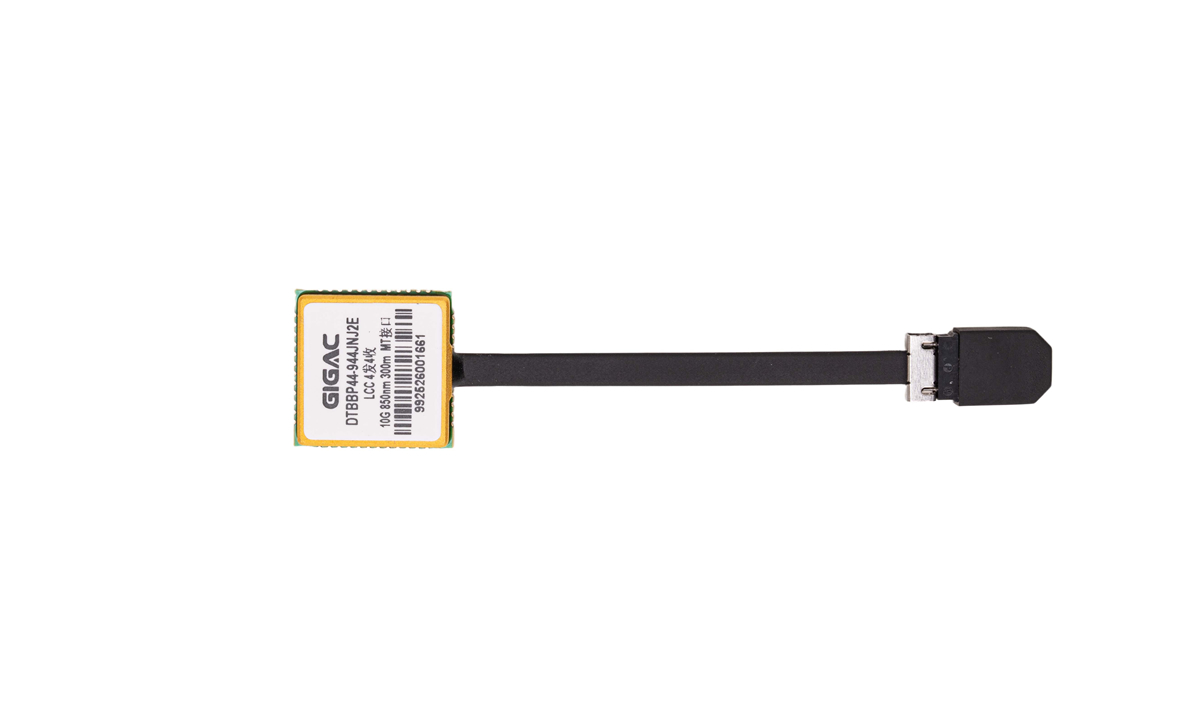

GIGAC Technology's 10G 850nm 2-transmit 2-receive LCC32 surface-mount parallel transceiver module focuses on the integrated application of microwave and photon technologies.
The module is equipped with 2 transmit and 2 receive parallel optical fiber channels, with a single channel supporting a transmission rate of 10.3125Gbps, and a transmission distance of up to 100m on OM3 multimode optical fiber. There is a wide range of optical fiber types available, including flat fibers, round fibers, loose fibers, etc. It has flexible configurations with springs and guide pins, and the pigtails can be customized with corresponding length codes. It is powered by a single 3.3V power supply, with data differential signal input/output at CML level, and supports I2C serial data interface communication monitoring. It has a compact structure to achieve high-density and high-capacity design, and adopts manual welding.
Product Features:
2-channel transmission and 2-channel reception parallel fiber optic channel
Supports single-channel transmission at a rate of 10.3125Gbps
OM3 multimode fiber transmission distance of 100m
Options include flat fiber, round fiber, with spring, and with guide pin
Single 3.3V power supply
Data differential signal input/output with CML level
I2C serial data interface for communication monitoring
Compact structural design, high density and high capacity
Hand soldering
Custom temperature grade (D)
Application:
Support for high-speed data communication connections over very short distances
Interconnection between servers and memory arrays
Airborne radar
Other optical links
Ordering Information:
| model number | Rate | wavelength | Distance | Fiber | Interface | temp (Note 1) |
| DTBBP44-922*NJ2* | 10.3125Gbps | 850nm | 100m | MML | MT | -40℃~+85℃ |
| DTBBP44-922*NM2* | 10.3125Gbps | 850nm | 100m | MML | MT | -55℃~+85℃ |
| DTBBQ44-922*NJ2* | 10.3125Gbps | 850nm | 100m | MML | MT | -40℃~+85℃ |
| DTBBQ44-922*NM2* | 10.3125Gbps | 850nm | 100m | MML | MT | -55℃~+85℃ |
