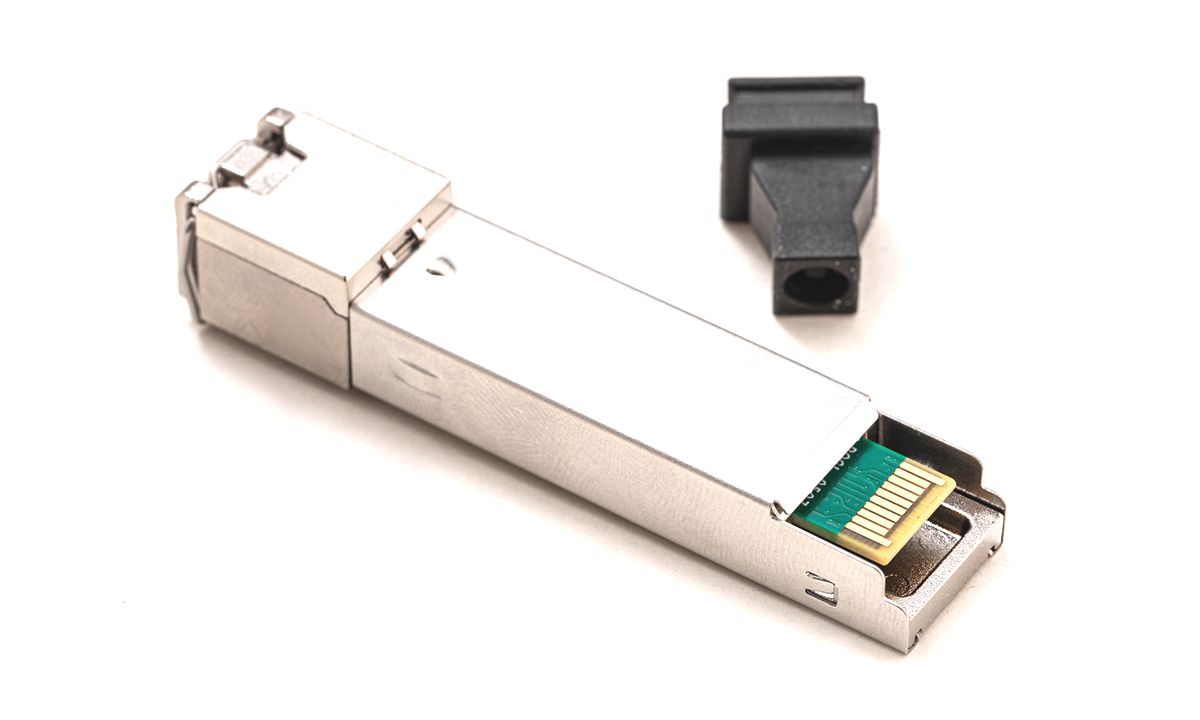

The SFP+ XGS-PON OLT Optical Module is a high-speed, miniaturized fiber optic module specifically designed for XGS-PON (10G Symmetric Passive Optical Network) OLT (Optical Line Terminal) applications. Utilizing the SFP+ (Small Form-factor Pluggable Plus) packaging format, it offers significant advantages such as high density, low power consumption, and cost-effectiveness, enabling efficient use of space and energy in access network deployments while maximizing bandwidth utilization.
In terms of application scenarios, the SFP+ XGS-PON OLT Optical Module plays a crucial role in Fiber-to-the-Home (FTTH) networks, triple-play services, centralized management, and multi-port connectivity. It provides users with high-speed and stable broadband services, supporting the transmission of voice, data, and video multimedia services. This enables efficient internet access, meeting the demands of users for high-speed and reliable network connections.
Here are the key features of the optical module:
It supports ITU-T G.9807.1 XGS-PON OLT N1/N2 application, enabling seamless integration with industry-standard network architectures.
It offers single-fiber bi-directional data links with a downstream speed of 9.953Gbps and a compatible upstream speed of either 9.953Gbps or 2.488Gbps, providing high-speed and efficient data transmission.
The module incorporates a 1577nm continuous-mode transmitter with an EML laser, ensuring stable and reliable optical transmission.
It also features a 1270nm burst-mode receiver with APD-TIA, enhancing signal reception quality and sensitivity.
For enhanced monitoring and management, the module provides a 2-wire interface for integrated digital diagnostic monitoring according to the SFF-8472 standard.
The optical module comes in an SFP+ package with an SC/UPC receptacle optical interface, providing a compact and interchangeable solution for various hardware platforms.
It is powered by a +3.3V power supply, ensuring efficient and stable operation.
The module is RoHS compliant with exemptions, meeting environmental and safety standards.
With a reach of 20 kilometers, it can effectively cover large areas, making it suitable for various network topologies.
Operating case temperature ranges from 0°C to +70°C for standard use and -40°C to +85°C for industrial applications, ensuring reliable performance in diverse environmental conditions.
The module exhibits excellent electromagnetic interference (EMI) and electromagnetic compatibility (EMC) characteristics, ensuring stable and interference-free operation.
It is compliant with RoHs2.0, ensuring compliance with the latest environmental regulations.
Order Information
| PartNumber | DataRate (TX/RX) | Index level | PO (dBm) | Sens (dBm) | Interface | Temp(Note1) |
| GXSLP-7294-N1CSS(Note2) | TX:9.953G RX:2.488G | N1 | +2~+5 | ≤-26/27.5 | SC | 0°C~+70°C |
| GXSLP-7294-N1CSL(Note3) | TX:9.953G RX:2.488G | N1 | +2~+5 | ≤-26/27.5 | SC | 0°C~+70°C |
| GXSLP-7294-N2CSS(Note4) | TX:9.953G RX:2.488G | N2 | +4~+7 | ≤-28/29.5 | SC | 0°C~+70°C |
| GXSLP-7294-N2CSL(Note5) | TX:9.953G RX:2.488G | N2 | +4~+7 | ≤-28/29.5 | SC | 0°C~+70°C |
| GXSLP-7294-N1ISS(Note2) | TX:9.953G RX:2.488G | N1 | +2~+5 | ≤-26/27.5 | SC | -40°C~+85°C |
| GXSLP-7294-N1ISL(Note3) | TX:9.953G RX:2.488G | N1 | +2~+5 | ≤-26/27.5 | SC | -40°C~+85°C |
| GXSLP-2729-N2ISS(Note4) | TX:9.953G RX:2.488G | N2 | +4~+7 | ≤-28/29.5 | SC | -40°C~+85°C |
| GXSLP-2729-N2ISL(Note5) | TX:9.953G RX:2.488G | N2 | +4~+7 | ≤-28/29.5 | SC | -40°C~+85°C |
Here are the updated key features of the optical module with additional notes:
It supports ITU-T G.9807.1 XGS-PON OLT N1/N2 application, enabling seamless integration with industry-standard network architectures.
The module offers single-fiber bi-directional data links, providing a downstream speed of 9.953Gbps and a compatible upstream speed of either 9.953Gbps or 2.488Gbps. This ensures high-speed and efficient data transmission.
With a 1577nm continuous-mode transmitter equipped with an EML laser, the module ensures stable and reliable optical transmission.
The 1270nm burst-mode receiver, coupled with APD-TIA, enhances signal reception quality and sensitivity.
For enhanced monitoring and management, the module incorporates a 2-wire interface for integrated digital diagnostic monitoring, compliant with the SFF-8472 standard.
It comes in an SFP+ package with an SC/UPC receptacle optical interface, offering a compact and interchangeable solution for various hardware platforms.
Powered by a +3.3V power supply, the module ensures efficient and stable operation.
The module is RoHS compliant with exemptions, adhering to environmental and safety standards.
With a reach of 20 kilometers, it can effectively cover large areas, making it suitable for diverse network topologies.
Operating case temperature range is from 0°C to +70°C for standard use and -40°C to +85°C for industrial applications, ensuring reliable performance in a wide range of environmental conditions.
Additional Notes:
The "Temp" mentioned refers to the operating case temperature range, which indicates the range of temperatures at which the module can operate reliably.
Receiver Signal Detection:
RX-SD (Receiver Signal Detected): This parameter indicates the status of the received signal. An RX-SD value of 0 indicates signal loss, while an RX-SD value of 1 indicates a valid signal.
Rx-LOS (Receiver Loss of Signal): This parameter also reflects the status of the received signal. An RX-LOS value of 0 signifies a valid signal, whereas an RX-LOS value of 1 indicates signal loss.
These features, along with the additional notes, demonstrate the reliability and efficiency of this optical module, making it a suitable choice for high-speed optical communication systems.
