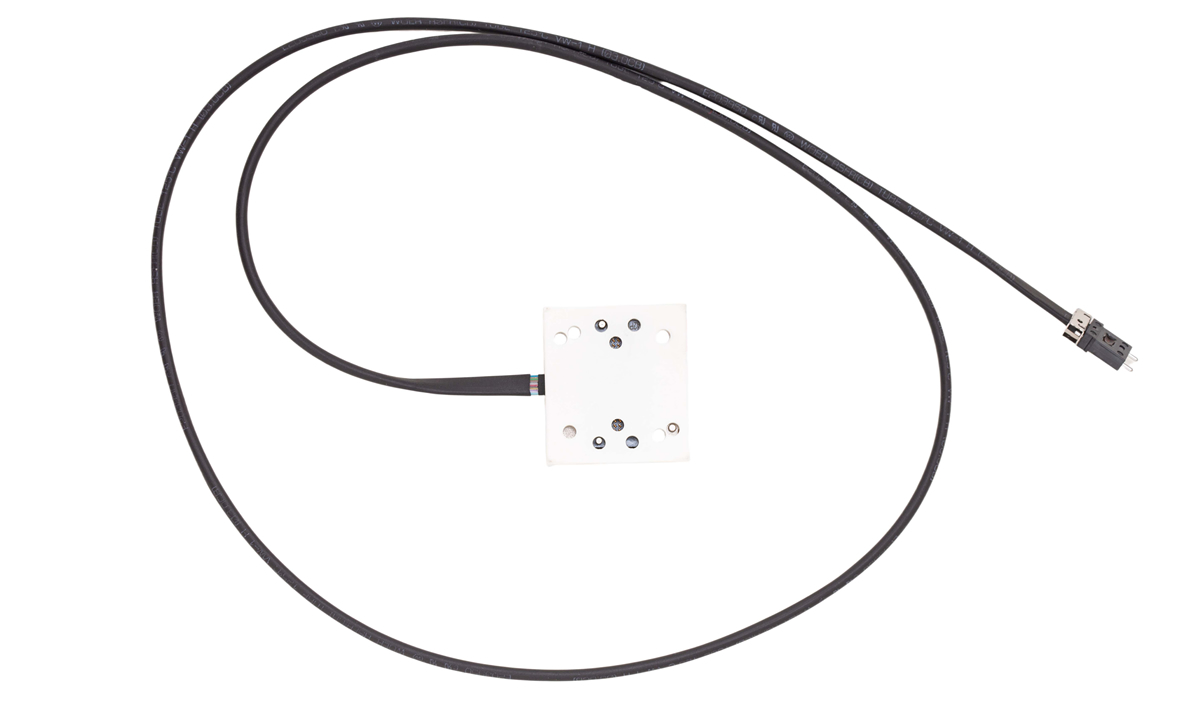

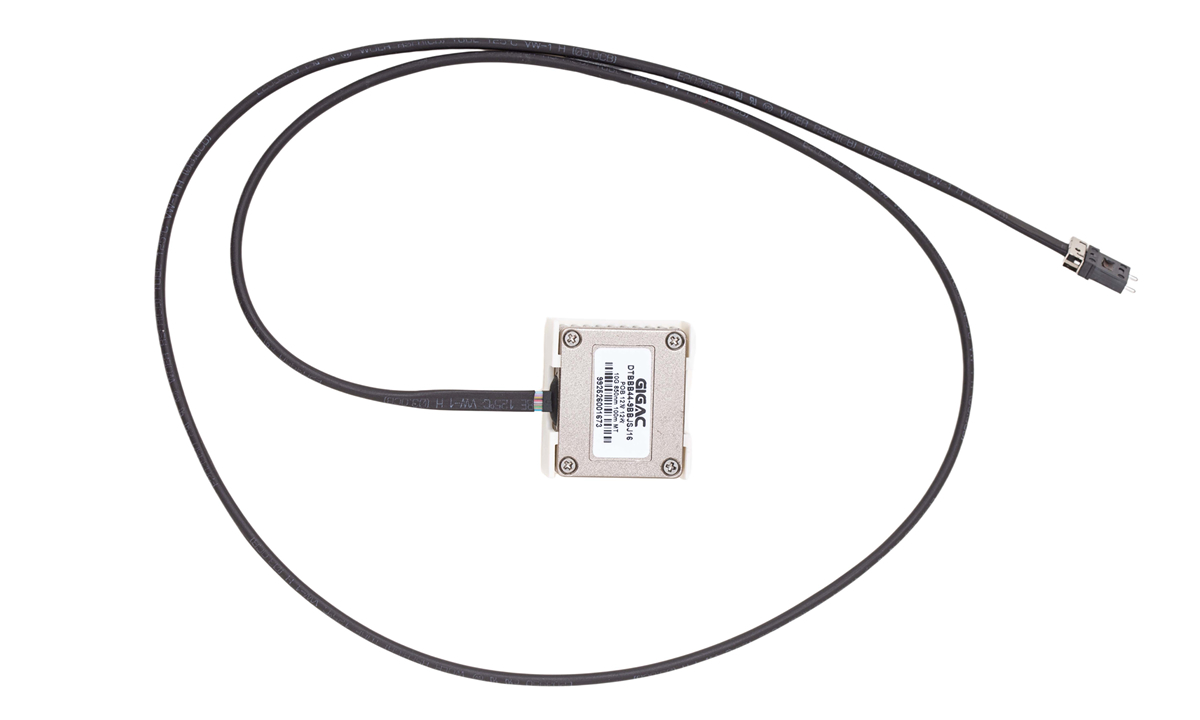

850nm 24TX24RX POB parallel optical transceiver module

Gigac Technology's 850nm 24-transmitter, 24-receiver POB parallel optical module utilizes 24 pairs of VCSEL transmitters and a PIN photodiode receiver array. Operating at an 850nm wavelength, it supports multimode fiber transmission and achieves ultra-high-density optical interconnection through a full-duplex 24-channel parallel architecture. With single-channel rates exceeding 25Gbps and total bandwidth exceeding 600Gbps, it is suitable for ultra-high-speed data transmission over very short distances (such as chip-to-chip and board-level millimeter-level interconnects). Its design offers higher integration and packaging density, while optimizing signal integrity and power management. It meets the ultra-high bandwidth and low latency requirements of scenarios such as data center leaf-spine networks, supercomputing clusters, artificial intelligence training platforms, and high-density radar signal processing systems. It is particularly well-suited for optical backplane interconnects requiring ultra-high

Product Features

24 transmit and 24 receive parallel fiber channels

Single-channel data rates supported: 155 Mbps, 622 Mbps, 1.25 Gbps, 2.5 Gbps, 3.125 Gbps, 4.25 Gbps, 6.25 Gbps, and 10.3125 Gbps

Electrical connector: spring-loaded press-fit

Optical interface: 48-core MT loose fiber

50μm multimode fiber transmission distance: 100 m to 1 km

Spring-loaded or navigation pin options available

Single 3.3V power supply

Differential data signal input Output CML level

I2C serial data interface communication monitoring

Compact design, high density and high capacity

Operating temperature:

Commercial grade (C): 0°C to +70°C

Industrial grade (I): -40°C to +85°C

Applications:

Supports very short-range high-speed data communication connections

Server and storage array interconnects

Airborne radar

Other optical links

Compliant with Class I laser safety standard IEC-60825

ROHS 2.0

Ordering Information:

Note 1: Case temperature.Note 2: "*" = H indicates flat fiber; "*" = J indicates round fiber; "*" = N indicates loose fiber; "*" = P indicates flat fiber with spring; "*" = Q indicates round fiber with spring.Note 3: "*" indicates pigtail length. See the pigtail length code table for details.
