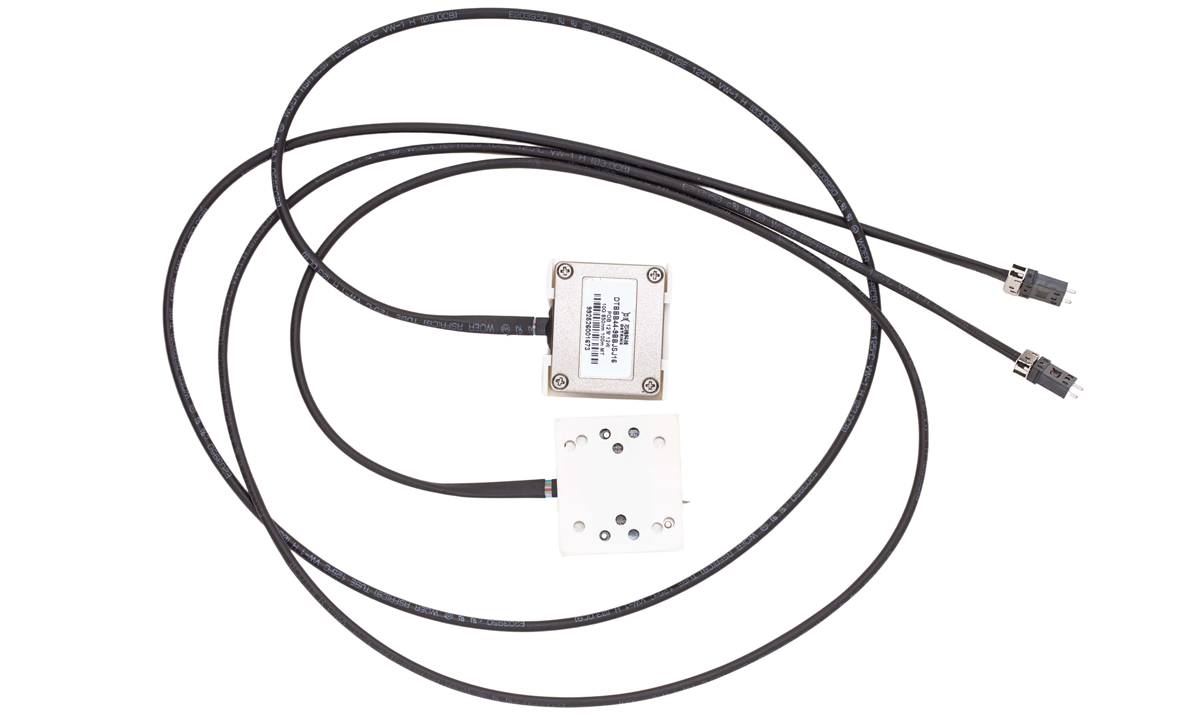

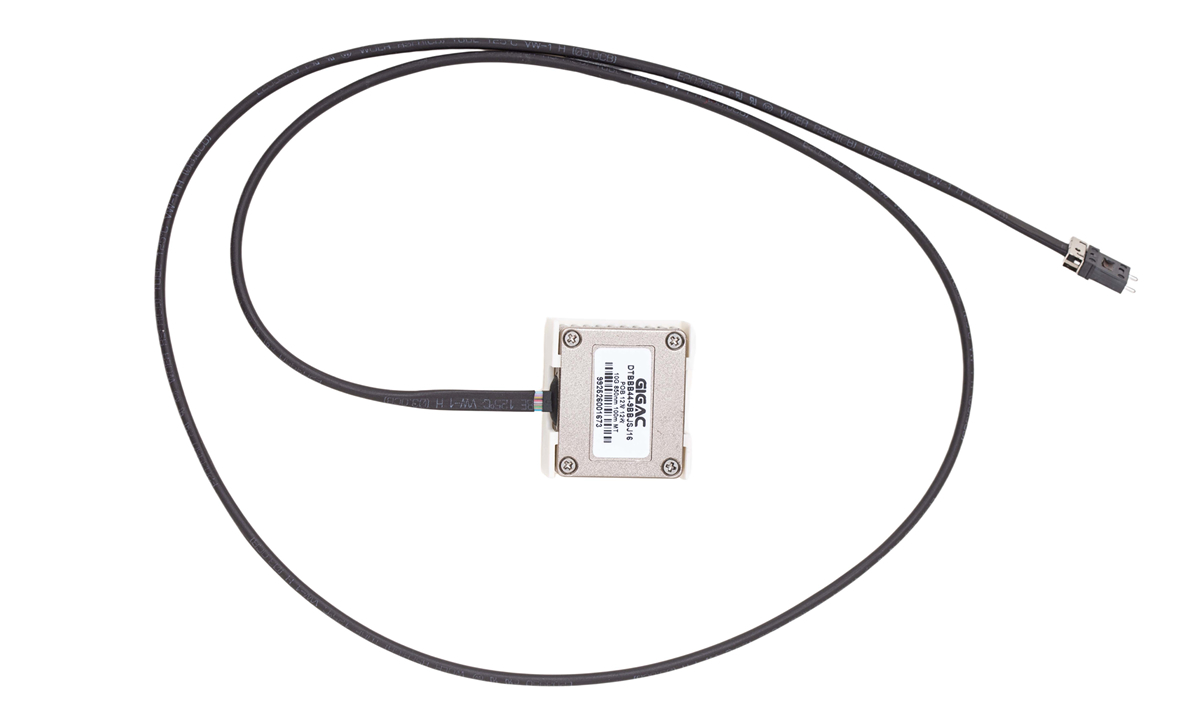

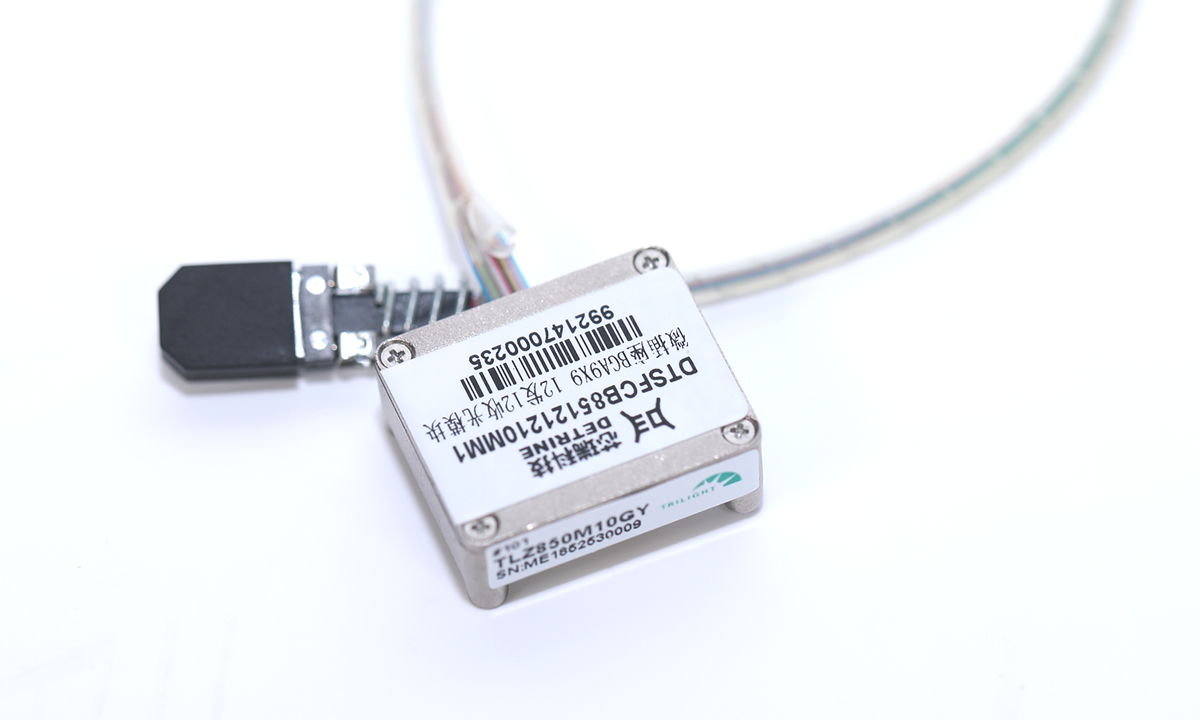

850nm 12TX12RX POB parallel optical transceiver module

Gigac Technology's standard 850nm 12-transmitter, 12-receiver POB (Parallel Optical Board) parallel optical module is a high-density, high-speed optical communication component designed for short-distance, high-capacity data transmission. Its core utilizes 12 pairs of independent VCSEL (Vertical Cavity Surface Emitting Laser) transmitter arrays and corresponding PIN photodiode receiver arrays, operating at the 850nm near-infrared wavelength and compatible with multimode fiber for efficient parallel optical signal transmission. This module utilizes a 12-channel full-duplex architecture, enabling simultaneous bidirectional data transmission and reception, significantly increasing overall bandwidth (e.g., achieving a total rate of 300Gbps at 25Gbps per channel). Its compact integrated package and low power consumption make it ideal for high-speed data communication over very short distances (VSRs), such as millimeter-level interconnects between boards and between cards and backplanes; high-bandwidth direct connections between servers and storage arrays (supporting SAN storage networks or ultra-low-latency data access); airborne radar systems (meeting the requirements for high-speed signal processing and electromagnetic interference mitigation within aircraft cabins); and optical links within industrial automation and medical equipment. The modules are usually equipped with MPO/MTP multi-core fiber interfaces to ensure high reliability and convenient deployment, and are the core solution for short-distance high-speed interconnection.

Product Features

12 transmit and 12 receive parallel fiber channels

Single-channel data rates supported: 155 Mbps, 622 Mbps, 1.25 Gbps, 2.5 Gbps, 3.125 Gbps, 4.25 Gbps, 6.25 Gbps, and 10.3125 Gbps

Electrical connector: spring-loaded

Optical interface: 24-fiber MT

50 μm multimode fiber transmission distance: 100 m to 1 km

50 μm flat fiber, round fiber, spring loaded, or with navigation pin options

Single 3.3 V power supply

Differential data Signal input/output CML levels

I2C serial data interface communication monitoring

Compact design, high density and high capacity

Operating temperature:

Commercial (C): 0°C to +70°C

Industrial (I): -40°C to +85°C

Applications:

Supports very short-range, high-speed data communication connections

Server and storage array interconnects

Airborne radar

Other optical links

Implementation standards

Compliant with Class I laser safety standard IEC-60825

ROHS 2.0

Ordering Information:

Note 1: Case temperature.

Note 2: "*" = H indicates flat fiber; "*" = J indicates round fiber; "*" = N indicates loose fiber; "*" = P indicates flat fiber with spring; "*" = Q indicates round fiber with spring.

Note 3: "*" indicates pigtail length. See the pigtail length code table for details.

Pigtail length code table:

Note:

For pigtail lengths ≥50mm, flat, round, and loose fiber options are available, with springs or guide pins.

For pigtail lengths <50mm, flat fiber options are available without springs.

The standard pigtail length tolerance is ±L*5%.

Special requirements will be discussed separately.
