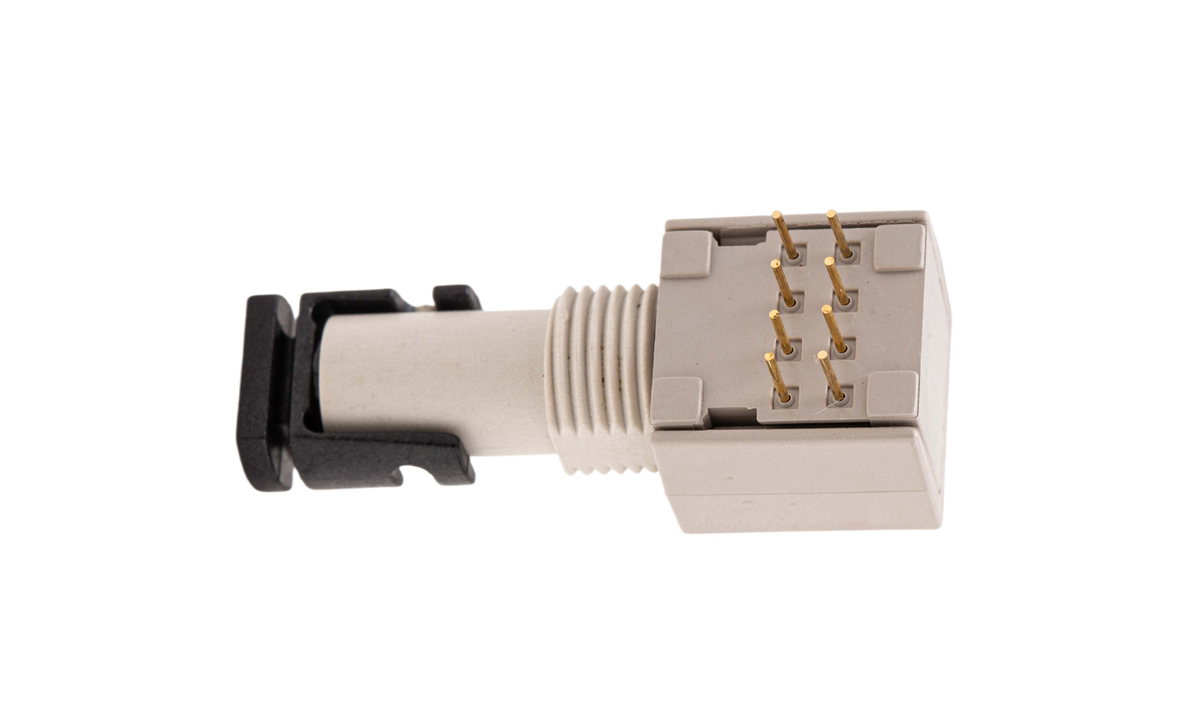

Perfect compatibility Avago HFBR-2412M 820nm Miniature Link Transceiver

In the field of industrial control link communications, Gigac Technology's DT-2412M 820nm micro link transceiver, with its superior performance and wide compatibility, is a perfect alternative to the Avago HFBR-2412M.

In terms of basic features, it utilizes the industry-standard Threaded FC connector. This standardized design provides strong compatibility, enabling stable and reliable connections with a wide range of devices that comply with this standard, significantly simplifying device integration and replacement. Its equipped PIN detector offers efficient and accurate signal detection, quickly capturing and processing transmitted signals to ensure accurate and timely data transmission. Supporting link data rates from DC to 5MBd, it can easily meet the diverse data transmission requirements of industrial control scenarios, from low-speed status monitoring data to relatively high-speed control commands. Powered by a single +5.0V power supply and utilizing TTL logic, this streamlined power supply and logic design makes the device more convenient to use and reduces the complexity of power management and logic control.

The product's miniaturized design is a major highlight, saving valuable space while also enhancing its adaptability to harsh environments through a compliant surface coating. The DT-2412M operates stably in industrial environments, including those subject to high temperatures, high humidity, strong electromagnetic interference, and dust, providing a solid foundation for reliable communication in industrial control systems. Furthermore, it offers excellent compatibility with a variety of fiber types, including 50/125um, 62.5/125um, 100/140um, and 200um. This allows for flexible deployment in diverse industrial applications without the worry of fiber type mismatches.

The DT-2412M plays a vital role in the core application of industrial control links. It ensures real-time and accurate data transmission between industrial devices, enabling precise control and status monitoring, and providing strong support for automated and intelligent industrial production.

To ensure optimal performance of the DT-2412M in practical applications, special care must be taken during PCB layout. It is recommended to place an RL resistor at the receiving device pin, and the resistor value can be adjusted based on actual signal quality. This design primarily ensures signal matching, effectively preventing signal integrity issues such as ringing and backchannel caused by signal reflections, thereby ensuring stable and reliable data transmission.

In short, the Gigac Technology DT-2412M 820nm micro link transceiver, with its outstanding performance, wide compatibility, and reliable application performance, is an ideal choice for communication equipment in the industrial control field.

Features：

ThreadedFCindustry standard connector.
PIN detector
Data rate DC ~ 5MBd link
+5.0V single power supply and TTL logic

Miniature design：

Usage in harsh environment enabled by conformal coating
Support fiber type50/125um,62.5/125um,100/140um,200um

Applications：

Industrial control links
Link Design：

Figure  DT-2412M

Note: It is recommended that when PCB wiring, RL is placed at the pin of the receiving device, and the size can be adjusted according to the signal quality, the main role is to match the effect and prevent signal integrity problems such as ringing and backchannel due to reflection.

Mechanical Information(Tolerance: ±0.5mm)
