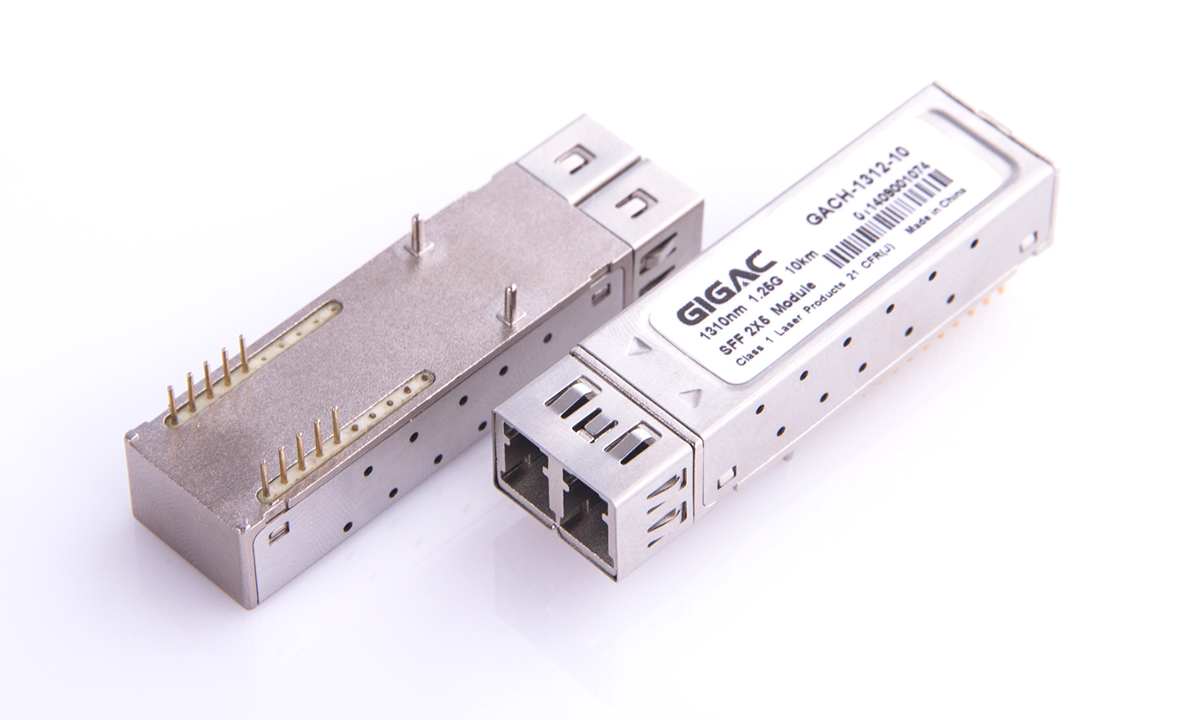

Compatible with Avago AFBR-59E4APZ-HT series SFF optical modules

This energy-efficient SFF optical module, custom-designed by Gigac Technology for full compatibility with the Broadcom® AFBR-59E4APZ-HT, offers system designers a comprehensive solution for implementing Fast Ethernet over multimode fiber. The module utilizes an industry-standard 2×5 dual-in-line package (DIP) format and features an LC fiber connector interface. The transmitter portion of the module utilizes a 1310nm light-emitting diode (LED). This LED chip is packaged within the transmitter's optical subassembly. It is driven by an integrated circuit that converts differential low-voltage positive emitter-coupled logic (LVPECL) signals into analog LED drive current. The receiver portion of the module utilizes an indium gallium arsenide (InGaAs) PIN photodiode coupled to a transimpedance preamplifier integrated circuit (IC). This IC is also packaged within the receiver's optical subassembly. The PIN photodiode and preamplifier circuitry connect to a quantizer IC, which performs final pulse shaping on the data output. The data output uses differential LVPECL signaling. The signal detect output is single-ended. Both the data output and signal detect output are compatible with the LVPECL standard.

Product Features

Multi-source 2×5 package: Utilizes a common 2×5 package across multiple suppliers for easy procurement and replacement.

Compatible with various multimode fibers: Compatible with both 62.5/125 μm and 50/125 μm multimode fibers, it can be used in a wide range of applications.

Single +3.3V power supply: Requires only a single +3.3V power supply, simplifying power supply design and reducing system complexity and cost.

Compatible with wave soldering and aqueous cleaning processes: The product is designed to be compatible with wave soldering and aqueous cleaning processes, meeting the needs of large-scale manufacturing.

Manufactured in an ISO 9001-certified facility: Manufactured in an ISO 9001-certified quality management system, ensuring product quality and process stability.

Compliant with the optical performance requirements of IEEE 802.3u 100BASE-FX: Meets the optical performance specifications of the 100BASE-FX version of the IEEE 802.3u standard, ensuring network transmission reliability and compatibility.

RoHS Compliant: This product complies with the EU's Restriction of Hazardous Substances (RoHS) Directive, ensuring environmental safety.

LVPECL Signal Detection Output: Provides LVPECL signal detection output for easy system monitoring and troubleshooting.

Wide Operating Temperature Range: With an operating temperature range of –40°C to +95°C, it operates stably in extreme temperature environments, suitable for a variety of industrial and outdoor applications.

Applications

Fast Ethernet: Suitable for building Fast Ethernet networks, providing high-speed, stable data transmission capabilities to meet the bandwidth requirements of enterprise networks, data centers, and other scenarios.

AFBR-59E4APZ-HT Product Dimensions:
