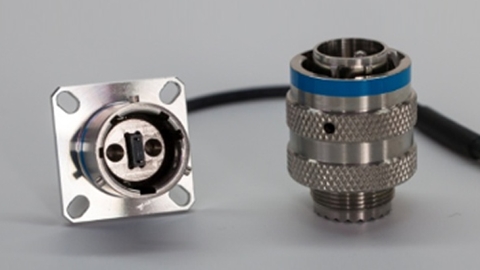

GYMB Series Fiber Optic Connectors

Gigac Technology's GYMB series fiber optic connectors offer low insertion loss and excellent return loss, ensuring efficient and stable transmission of optical signals. They also offer excellent mechanical properties, secure connections, vibration and shock resistance, excellent interchangeability and repeatability, low added loss, and long-term reliability. They are highly adaptable to environmental conditions, have a wide temperature range, and feature a sealed, corrosion-resistant housing to withstand harsh conditions. Their high integration density and compact design facilitate installation and maintenance, saving space and costs.

The GYMB series fiber optic connectors are primarily used in digital radar and large-scale optical communications. With excellent environmental resistance, fast connection, and self-locking features, they meet the stable and reliable optical signal transmission requirements of high-speed aircraft, ensuring the normal operation of navigation and communication systems. The GYMB series fiber optic connectors are also suitable for marine environments, ensuring optical signal transmission for ship communications, radar, and other systems. In ground-based communication systems, such as data centers and telecommunications networks, they enable stable transmission of large numbers of optical channels, meeting the demands of high-speed data transmission and processing.

Mechanical Performance

• Mechanical Life: 500 plug-in/plug-out cycles

• Shock: Acceleration 490 m/s², duration 11 ms

• Vibration: 10 Hz to 2000 Hz, power spectral density 0.06 G²/Hz

Environmental Performance

• Temperature Range: -40°C to +85°C

• Salt Spray: Class K: 500 hours, Class F: 48 hours, Class W: 500 hours

Class MW: 192 hours (acidic atmosphere)

Optical Performance

• Insertion Loss: ≤0.6 dB

Contact Arrangement (Exemplified by Socket Mating Face)
