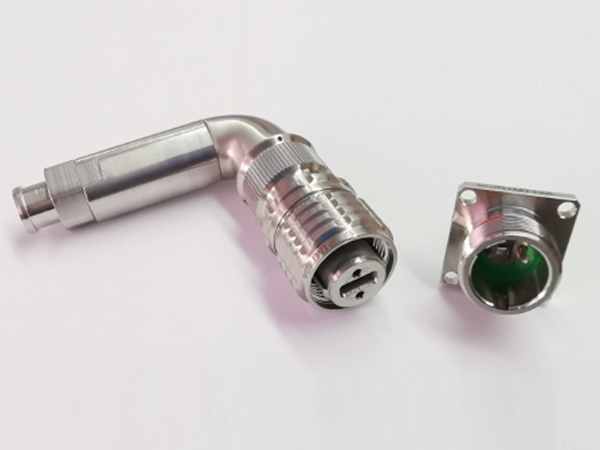

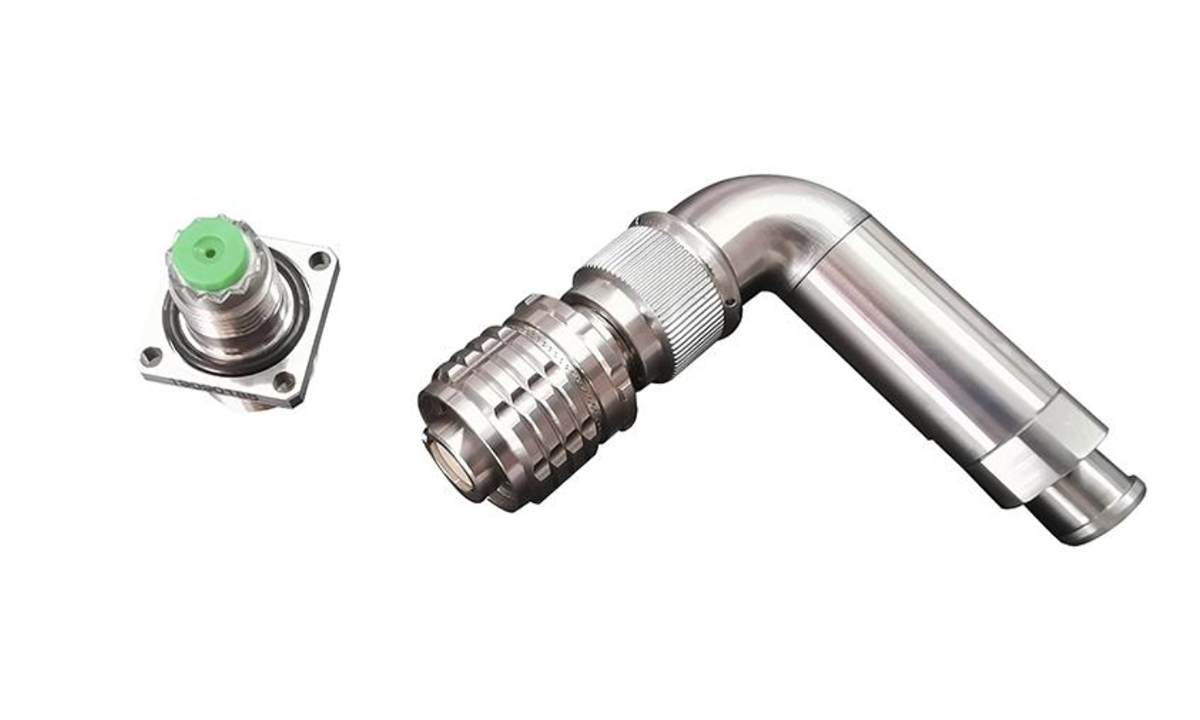

SC series self-locking fiber optic connector

The SC series self-locking fiber optic connectors feature a plug-and-latch fastening system. Their push-and-pull locking mechanism makes connecting and disconnecting quick and easy, eliminating the need for rotation and reducing installation and maintenance time. The SC series self-locking fiber optic connectors' internal design ensures optimal fiber alignment, effectively reducing insertion loss and ensuring efficient optical signal transmission. Their robust mechanical structure withstands repeated plugging and unplugging without significant performance degradation, ensuring reliable and durable connections. The SC series connectors offer broad compatibility, supporting both multimode and single-mode fiber and various fiber optic communication standards. They are also heat-resistant and resistant to oxidation.

In fiber-to-the-home (FTTH) deployments, the SC series self-locking fiber optic connectors are a standard interface for home fiber access, connecting fiber from the central office or residential data center to the user's home, enabling high-speed and stable communication. Within data centers, they are commonly used for high-speed fiber connections between servers, storage devices, switches, and routers, ensuring rapid data transmission. In local area networks (LANs), the SC series self-locking fiber optic connectors are suitable for connecting network equipment on different floors in large and medium-sized enterprises and educational institutions, or for connecting between main servers and branch offices. In communication base stations, SC series self-locking fiber optic connectors can connect radio frequency units (RRUs), baseband units (BBUs), and transmission equipment, as well as enable fiber optic interconnection between base stations. They can also be used in industrial automation control systems, such as those used for manufacturing process monitoring and industrial robots, to ensure efficient and stable operation of industrial equipment. In medical equipment such as endoscopes and surgical instruments, SC series self-locking fiber optic connectors enable high-speed data transmission and real-time monitoring.

Mechanical Properties

• Mechanical Life: 500 cycles of insertion and extraction
• Shock: 980m/s² with a duration of 6ms
• Vibration: 10Hz to 2000Hz, with a power spectral density of 0.4G²/Hz

Environmental Performance

• Temperature Range: -55℃ to +85℃
• Salt Spray: 500 hours (Stainless Steel 316L)

Optical Performance

• Insertion Loss: ≤0.6dB

Contact Arrangement (View from the Mating Face of the Receptacle)

Overall Dimensions

Plug

Square Flange Mount Receptacle

Dimensions after Mating of Plug and Receptacle
