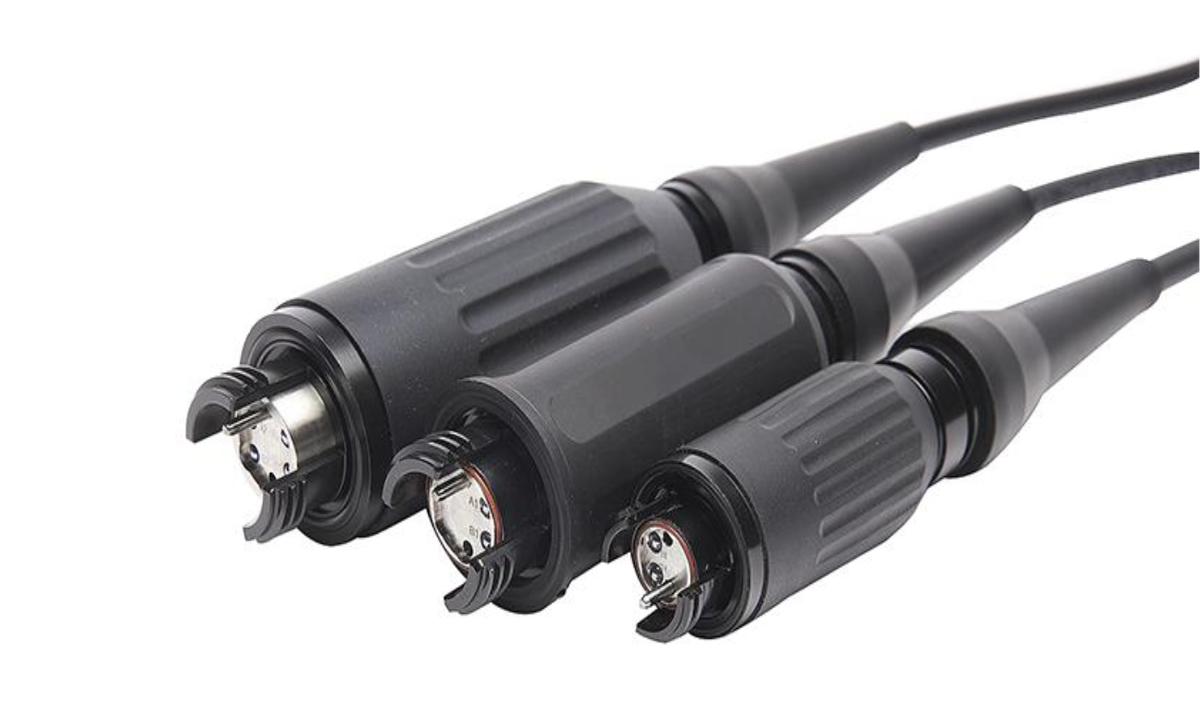

This series of products complies with MIL-DTL-83526 standards, using ball lenses to transmit signals, which enhances product lifetime and reliability. They are connected through trapezoidal threads, featuring an anti-mismating function.Mechanical PerformanceMechanical Life: 3000 cyclesShock Resistan
Mechanical Performance
Mechanical Life: 3000 cycles
Shock Resistance: 490 m/s² for a duration of 11 ms
Vibration Resistance: 10Hz to 500Hz, with an acceleration of 98 m/s²
Environmental Performance
Temperature Range: -40℃ to +85℃
Water Tightness: IPX8
Optical Performance
Insertion Loss:
0.8 ~ 1.8dB @ 1310, 1550nm
0.5 ~ 1.0dB @ 850, 1300nmReturn Loss: > 32dB (Single-mode)
Contact Arrangement
![1726207085194604[1]](https://gdz.suanmingdashi.com/uploadfile/ueditor/image/202509/175790192785068b.png "1726207085194604[1]")
Outline Dimensions of Watertight Beam Expanding Plug
![1726207142356397[1]](https://gdz.suanmingdashi.com/uploadfile/ueditor/image/202509/17579019142cc248.png "1726207142356397[1]")
Housing Number | A | B | C | D | E |
11 | 20.5 | 23.0 | 62.8 | 117.8 | 20.0 |
13 | 25.8 | 30.0 | 76.0 | 131.0 | 20.0 |
15 | 25.8 | 32.0 | 87.1 | 145.1 | 20.0 |
