ZXSM neutral watertight fiber optic connector

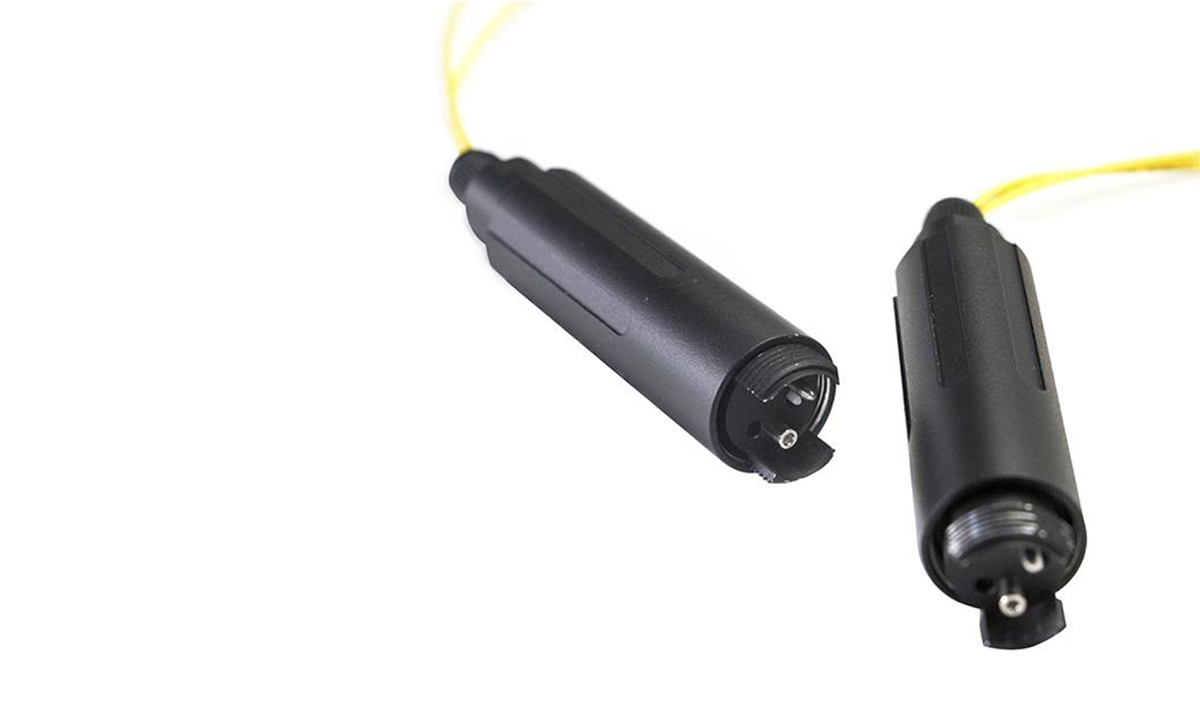

ZXSM neutral watertight fiber optic connector, also known as a watertight connector, is a connector used in underwater environments that ensures stable transmission of optical fiber connections even in harsh conditions such as moisture and underwater. It boasts excellent watertightness, effectively blocking the ingress of external moisture, ensuring reliable use in complex environments such as moisture and even underwater. At the same time, its optical fiber connection is precise and stable, ensuring high-quality transmission of optical signals with low insertion loss and return loss. It is widely used in fields such as marine engineering, underwater monitoring, and coastal communications that require high waterproofing and stable optical signal transmission, providing solid fiber optic connection guarantees for related projects. This series of products uses a neutral threaded quick connection and neutral fiber optic contacts for easy installation, disassembly, and maintenance. The housing is made of high-quality aluminum alloy and can connect two or four optical fibers simultaneously.

This series of products adopts a neutral threaded quick-connect design and utilizes neutral fiber optic contact elements, facilitating easy installation, removal, and maintenance. The housing is made of high-quality aluminum alloy material, capable of connecting either two-core or four-core optical fibers simultaneously.

Mechanical Properties

• Mechanical Life: 500 cycles of insertion and extraction
• Shock: 490m/s², lasting for 11ms
• Vibration: 10Hz to 2000Hz, with a power spectral density of 0.06G²/Hz

Environmental Performance

• Temperature Range: -55℃ to +125℃
• Salt Spray: 1000 hours
• Sealing: Capable of withstanding 15 meters of water depth for 24 hours

Optical Performance

• Insertion Loss: ≤0.6dB

Pin Arrangement (View from the Mating Face of the Socket)

Outline Dimensions

Plug

Pre-mating Schematic of Connector

Mating Schematic of Connector
