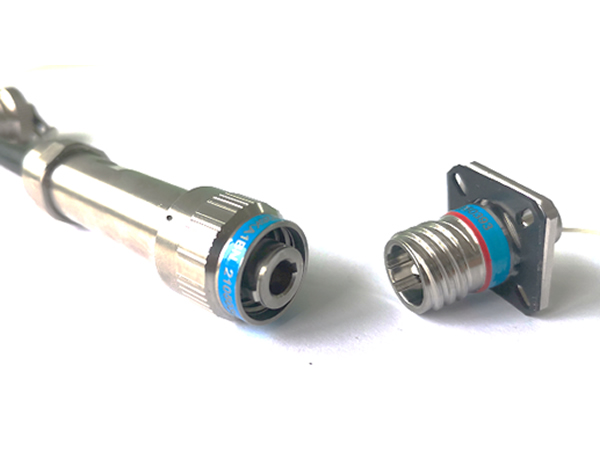

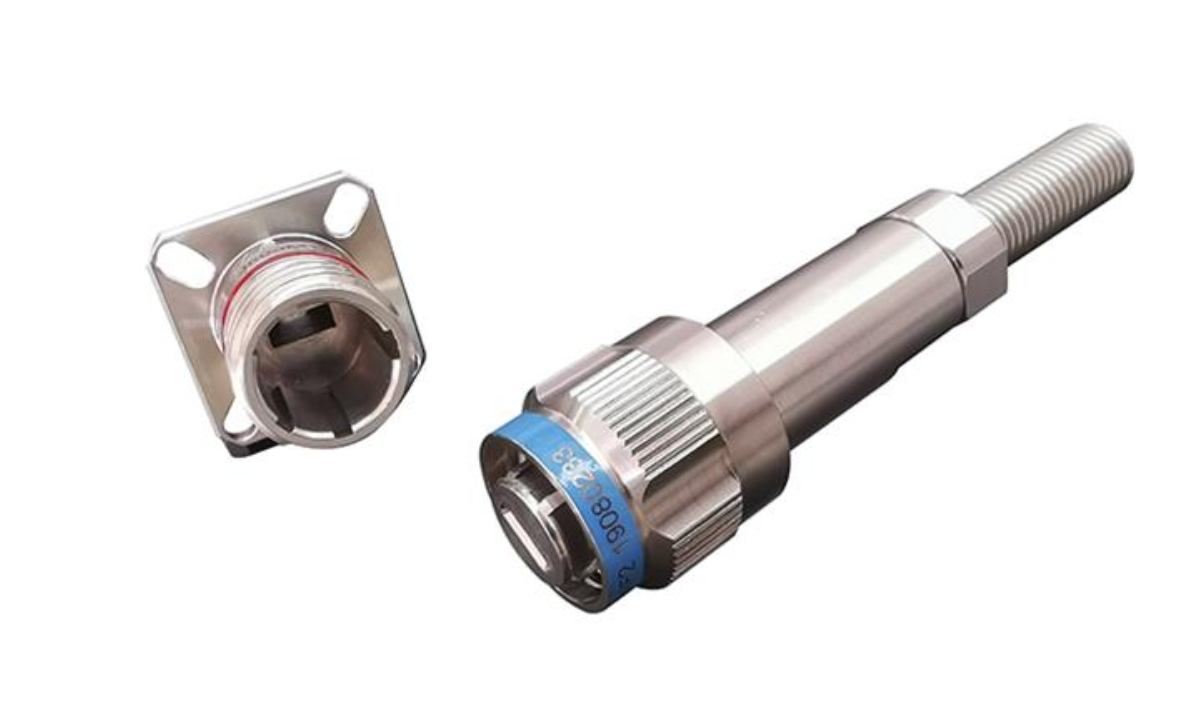

PM (polarization-maintaining) series fiber connector

Gigac Technology's polarization-maintaining (PM) fiber connectors maintain the polarization state of optical signals while ensuring stable and reliable signal transmission. They effectively reduce the effects of external factors on the polarization state of light, even under complex environmental conditions such as high and low temperature fluctuations and stress. They typically feature high extinction ratios, high pitch accuracy, low insertion loss, and a low deflection angle, enabling high-precision optical signal transmission. They also exhibit excellent repeatability and stability, adapting to a variety of operating environments. PM fiber connectors are primarily used in applications requiring stringent polarization requirements for optical signals. In fiber-optic communication systems, they can connect lasers to devices such as modulators and wavelength division multiplexers, ensuring the stability of high-speed, high-capacity optical signal transmission and mitigating the impact of polarization mode dispersion on system performance. In fiber-optic sensing applications such as fiber gyros, fiber hydrophones, and interferometric fiber sensors, they maintain the polarization state of light, improving sensor accuracy and sensitivity and enabling high-precision measurement of physical quantities. They also play a vital role in optical coherence detection, laser ranging, medical imaging, aerospace, and other fields, providing reliable support for high-precision measurement and signal transmission.

Features

Three-headed threaded quick connect with anti-loose structure

Three-key circumferential identification and positioning, enabling blind mating and error-proof insertion

The outer shell can be made of different materials and coatings to adapt to different environmental requirements

Features resistance to high-intensity vibrations

High-precision mating between the head and the socket, ensuring excellent repeatability of extinction ratio and low insertion loss for polarization-maintaining fiber optic cable assemblies.

Mechanical Properties

• Mechanical Life: 500 cycles of insertion and extraction
• Impact Resistance: 980m/s²
• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 147m/s²

Environmental Performance

• Temperature Range: -55℃ to +85℃ (based on fiber optic cable temperature)
• Salt Spray Resistance:

• Type K: 500 hours

• Type F: 48 hours

• Type W: 500 hours
  • Airtightness (Applicable to Polarization-Maintaining Fiber Optic Cable Assemblies):

• Gas Leakage Rate ≤ 1×10-9 Pa.m3/s, with an internal and external pressure difference of 1 atmosphere

Optical Performance

• Insertion Loss: ≤ 0.6dB
• Extinction Ratio: ≥ 20dB

Key position

Contact arrangement (view of the mating face of socket end)

Outer Dimensions

Plug

Socket
