Products Description
Features
Supports Up to 10.3Gbps bit rates
Transmission distance up to 220m (OM1 fiber)
Hot Pluggable SFP+ footprint
1310nm FP transmitter, PIN photo-detector
Digital Status monitoring Interface
Duplex LC connector
RoHS compliant and Lead Free
Metal enclosure for lower EMI
Single 3.3V power supply
Power dissipation < 1W
Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
10GBASE-LRM 10G Ethernet
Legacy FDDI multimode links
Product description

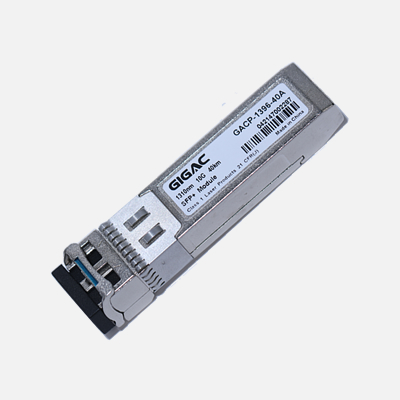

Gigac SFP+ LRM is an optical transceiver module for transmission at 1310nmoverlegacy multi mode fiber. Supporting 10GBASE-LRM Ethernet standard make it ideally suited for 10Gdatacom. Its very low power consumption and its excellent EMI performance allow systemdesignwithhighport density. The small form factor integrates a 1310nm Fabry-Perot (FP) laser in an LCpackageand a linear multimode PIN receiver. Gigac module is lead free, RoHScompliant andisdesigned and tested in accordance with industry safety standards. The Gigac SFP+ transceiver is a linear-interface transceiverthat enables, in conjunction with an Electronic Dispersion Compensation (EDC) on thehost board, an IEEE802.3aq 10GBASE-LRM compliant link. The host board EDC provides correctionfor thesevere modal dispersion that may occur during propagation through multimode fiber links, including legacy installed FDDI multimode fiber (see IEEE802.3aq for detailed information regardingfiber coverage).
Unlike the XFP MSA transceiver requirements, the SFP+ transceiver does not contain internal retiming circuitry, and thus some of the Transmitter Optical Characteristics stated in this datasheetrequire that the Host Board is compliant to the SFP+ MSA specifications. See Chapter 3inReference [1] for further details.
