SMC watertight connectors offer numerous advantages over other types, including corrosion resistance, excellent insulation, and lightweight. SMC's easy molding allows for flexible sealing design and long-term stability. They also offer excellent durability, strong impact and weather resistance, and low manufacturing and maintenance costs, resulting in a cost-effective solution suitable for a variety of performance-critical applications.
Gigac Technology's SMC watertight connector series is primarily designed for deepwater environments. They can simultaneously transmit optical and electrical signals and feature a three-button guide to prevent mis-mating. In the marine engineering field, they are commonly used in shipbuilding, underwater robotics, and marine observation systems. The industrial sector encompasses sewage treatment and chemical pipeline systems; the energy sector involves offshore wind power and oil drilling platforms; and the transportation sector includes automotive manufacturing and rail transit. They also play a role in other fields, such as swimming pools and water parks, building waterproofing, and aerospace. They provide reliable connections for numerous systems, ensuring stable operation in complex environments and preventing water and other adverse factors from impacting performance and safety.

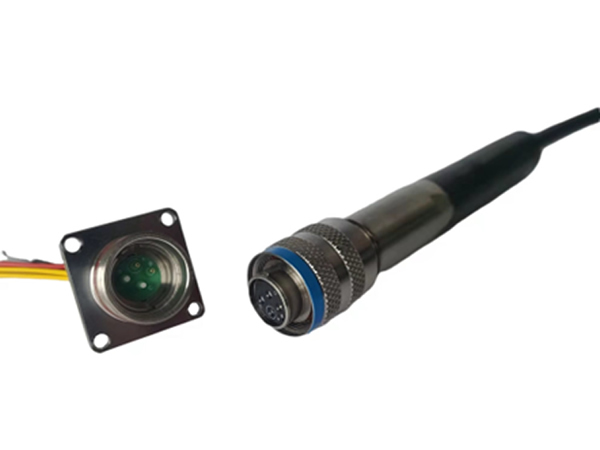

his series of products is mainly used in deep-water environments, capable of simultaneously transmitting optical and electrical signals. With a three-key guidance system, it features an anti-mismating function.
Mechanical Properties
• Mechanical Life: 500 cycles
• Shock: 490 m/s² with a duration of 11 ms
• Vibration: 10Hz to 500Hz, with an acceleration of 98m/s²
Environmental Performance
• Temperature Range: -40℃ to +80℃
• Watertightness: Capable of withstanding depths of up to 1000 meters
Electrical Performance
• Voltage Withstand: V
Operating Conditions | Sea Level | 21000m Altitude |
M | 1300 | 800 |
N | 1000 | 600 |
I | 1800 | 1000 |
II | 2300 | 1000 |
• Insulation resistance: ≥5000MΩ (500V DC)
• Contact resistance and rated current of contact parts:
Contact specifications | Working diameter mm | Contact resistance mΩ | Rated current A |
22D | Φ0.76 | ≤12 | 5 |
20# | Φ1.00 | ≤5 | 7.5 |
16# | Φ1.60 | ≤2.5 | 13 |
12# | Φ2.40 | ≤1.5 | 23 |
Optical Performance:
• Insertion Loss: ≤0.6 dB
Pin arrangement (view from the mating face of the socket end)
