Adjusting the Input Optical Power of an Optical Module
Adjusting the input optical power of an optical module is a crucial step in ensuring the efficient and reliable performance of optical communication systems. This process involves fine-tuning the power level of the incoming light signal to optimize its performance within the module. Here are the steps involved in adjusting the input optical power of an optical module:
Identify the Optimal Power Range: The first step is to consult the specifications of the optical module to determine the recommended input optical power range. This information is typically provided by the manufacturer and is crucial for setting the correct power level.

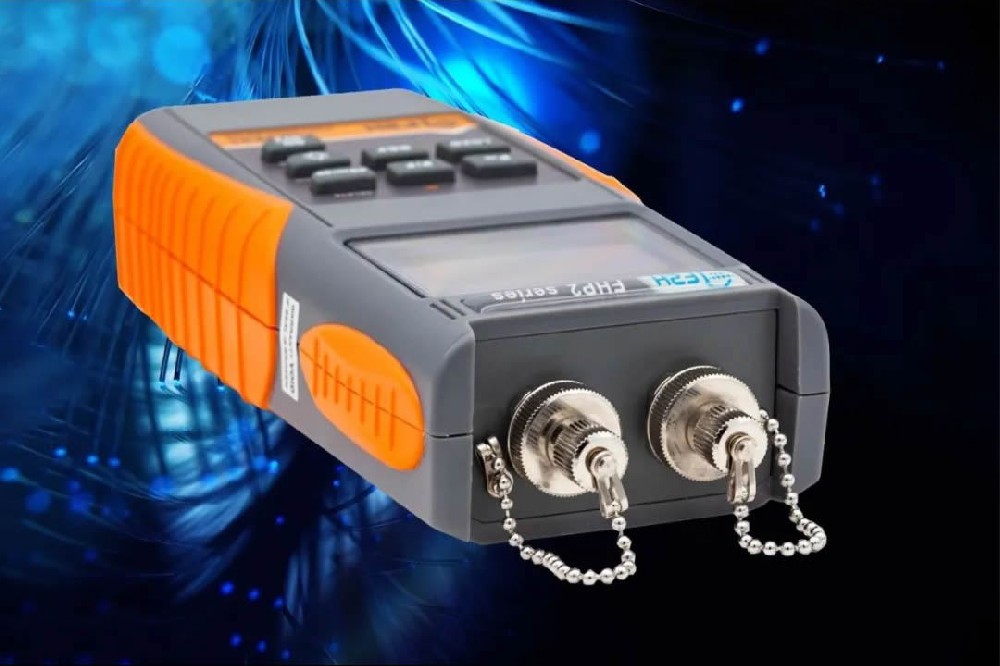

Use an Optical Power Meter: An optical power meter is a device used to measure the power of an optical signal. Connect the power meter to the input port of the optical module to measure the current input power level.
Adjust the Light Source: Depending on the measured power level, you may need to adjust the output power of the light source feeding into the optical module. This can be done by adjusting the settings of the light source, such as the laser driver current or the attenuation level.
Monitor the Output Performance: After adjusting the input optical power, it is important to monitor the output performance of the optical module. This can be done by measuring the optical signal-to-noise ratio (OSNR), bit error rate (BER), or other relevant performance metrics.
Iterative Fine-tuning: Adjustments to the input optical power may require iterative fine-tuning to achieve the desired performance. Repeat the process of measuring the input power, adjusting the light source, and monitoring the output performance until the optimal power level is reached.
It is important to note that excessive or insufficient input optical power can lead to performance degradation or even damage to the optical module. Therefore, it is crucial to follow the manufacturer's recommendations and use appropriate tools and equipment when adjusting the input optical power.
In conclusion, adjusting the input optical power of an optical module is a meticulous process that requires careful attention to detail. By following the steps outlined above and using the recommended tools and equipment, you can ensure optimal performance and reliability of your optical communication system.
