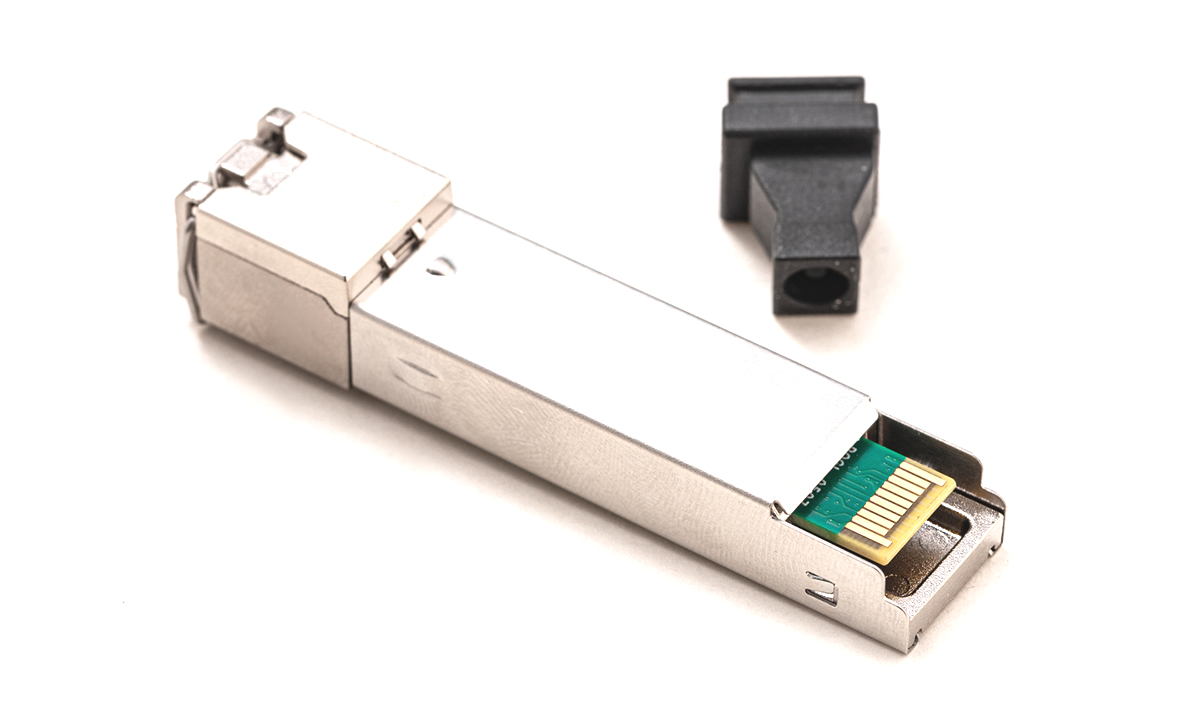

The SFP+ XGS-PON OLT Optical Module is a high-speed, miniaturized fiber optic module specifically designed for XGS-PON (10G Symmetric Passive Optical Network) OLT (Optical Line Terminal) applications. Utilizing the SFP+ (Small Form-factor Pluggable Plus) packaging format, it offers significant advantages such as high density, low power consumption, and cost-effectiveness, enabling efficient use of space and energy in access network deployments while maximizing bandwidth utilization.
In terms of application scenarios, the SFP+ XGS-PON OLT Optical Module plays a crucial role in Fiber-to-the-Home (FTTH) networks, triple-play services, centralized management, and multi-port connectivity. It provides users with high-speed and stable broadband services, supporting the transmission of voice, data, and video multimedia services. This enables efficient internet access, meeting the demands of users for high-speed and reliable network connections.
Features
Single fiber bi-directional data links with 9.953Gbps downstream and 2.488Gbps upstream in a SFP+
Comply with ITU-T G.987.2 (02/2016) XG-PON OLT N1/N2aApplication
1577nm continuous-mode transmitter with EML laser
1270nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring (SFF-8472)
SFP+ package with SC/UPC receptacle optical interface
+3.3V power supplies
RoHS With Exemptions
20Km Reach
operating case temperature：
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Excellent EMI and EMC characteristics
Compliant with RoHs2.0
Order Information
| PartNumber | DataRate (TX/RX) | Index level | PO (dBm) | Sens (dBm) | Interface | Temp (Note1) |
| GXLP-7292-N1CDS(Note2) | TX:2.488G RX:9.953G | N1 | +2~+7 | ≤-28.5 | SC | 0°C~+70°C |
| GXLP-7292-N1CDL(Note3) | TX:2.488G RX:9.953G | N1 | +2~+7 | ≤-28.5 | SC | 0°C~+70°C |
| GXLP-7292-N1CBS(Note4) | TX:2.488G RX:9.953G | N2a | +2~+7 | ≤-28.5 | SC | 0°C~+70°C |
| GXLP-7292-N1CDL(Note5) | TX:2.488G RX:9.953G | N2a | +2~+7 | ≤-28.5 | SC | 0°C~+70°C |
| GXLP-7292-N1IDS(Note2) | TX:2.488G RX:9.953G | N1 | +2~+7 | ≤-28.5 | SC | -40°C~+85°C |
| GXLP-7292-N1IDL(Note3) | TX:2.488G RX:9.953G | N1 | +2~+7 | ≤-28.5 | SC | -40°C~+85°C |
| GXLP-7292-N1IBS(Note4) | TX:2.488G RX:9.953G | N2a | +2~+7 | ≤-28.5 | SC | -40°C~+85°C |
| GXLP-7292-N1IDL(Note5) | TX:2.488G RX:9.953G | N2a | +2~+7 | ≤-28.5 | SC | -40°C~+85°C |
