Products Description
This series of products adopts a neutral threaded quick-connect design and utilizes neutral fiber optic contact elements, facilitating easy installation, removal, and maintenance. The housing is made of high-quality aluminum alloy material, capable of connecting either two-core or four-core optical fibers simultaneously.
Mechanical Properties
• Mechanical Life: 500 cycles of insertion and extraction
• Shock: 490m/s², lasting for 11ms
• Vibration: 10Hz to 2000Hz, with a power spectral density of 0.06G²/Hz
Environmental Performance
• Temperature Range: -55℃ to +125℃
• Salt Spray: 1000 hours
• Sealing: Capable of withstanding 15 meters of water depth for 24 hours
Optical Performance
• Insertion Loss: ≤0.6dB
Pin Arrangement (View from the Mating Face of the Socket)

Outline Dimensions
Plug
Pre-mating Schematic of Connector

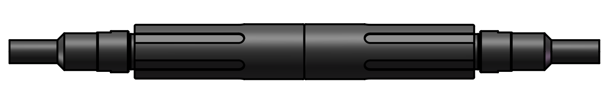

Mating Schematic of Connector
